Coil Springs: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1987 GMC Safari, 1987 GMC S15 Pickup, 1987 GMC S15 Jimmy, 1987 GMC Cab & Chassis, and 1987 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position spring on control arm ensuring that spring insulator is in place. Lift control arm with compressor tool and jack stand. Ensure spring is properly positioned.
    NOTE: Coil spring must be positioned with tape at lowest position. Bottom of spring is coiled helical and the top is coiled flat with a gripper notch near end of spring coil.

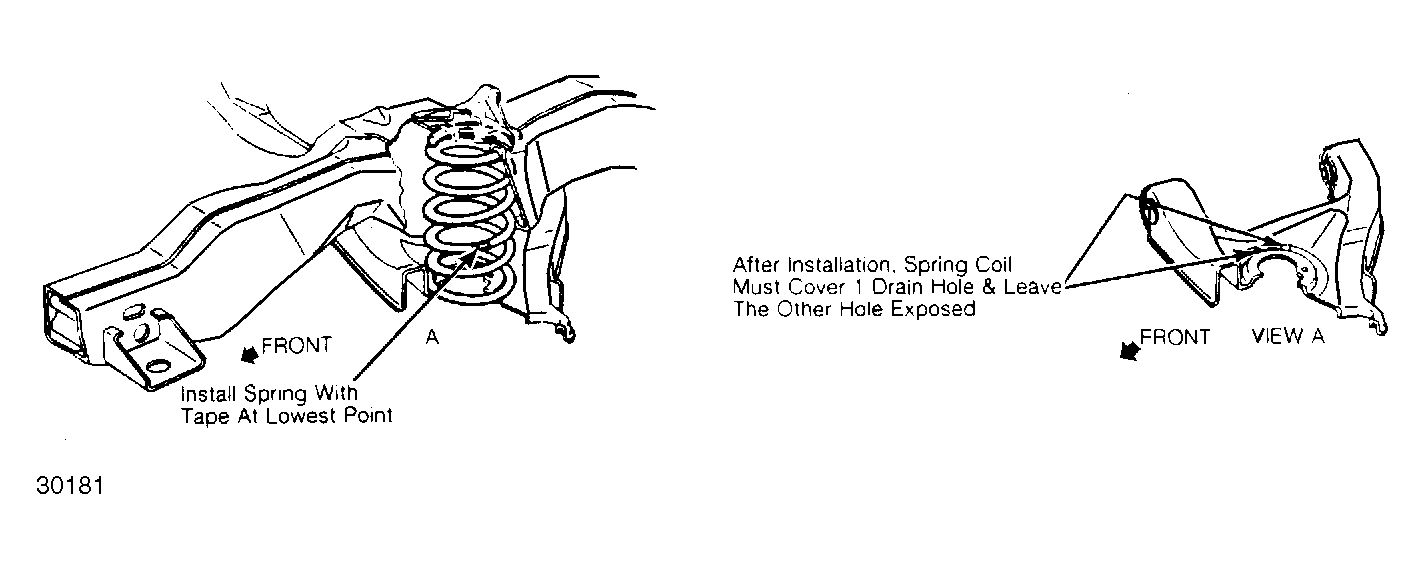

    Fig 1: Positioning Coil Spring For Installation
    G30181Courtesy of GENERAL MOTORS CORP.

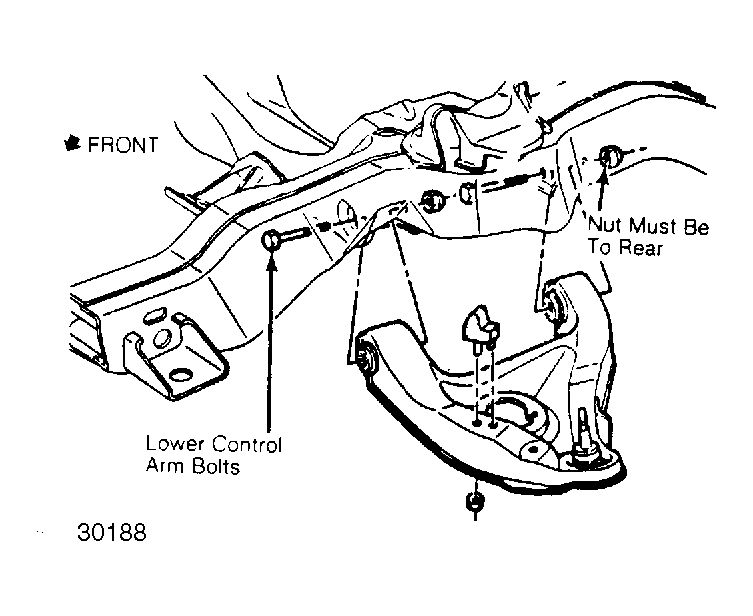

  2. Position lower control arm in frame and install pivot bolts (front bolt first). In order to maintain steering linkage clearance, install pivot bolts with nuts toward the rear of vehicle. See Figure . Complete installation by reversing remove procedure.
