Symptom Test Chart

  1. Verify complaint by using SYSTEM CHECK  . Use the CORVETTE ELECTRONIC INSTRUMENT PANEL SYMPTOM CHART to decide whether instrument cluster must be returned for repair or if there is a problem in vehicle circuitry.
  2. If symptom is not in CORVETTE ELECTRONIC INSTRUMENT PANEL SYMPTOM CHART, test all terminals of the digital cluster connectors or the indicator connector. See CORVETTE ELECTRONIC INSTRUMENT PANEL VOLTAGE & RESISTANCE TEST.

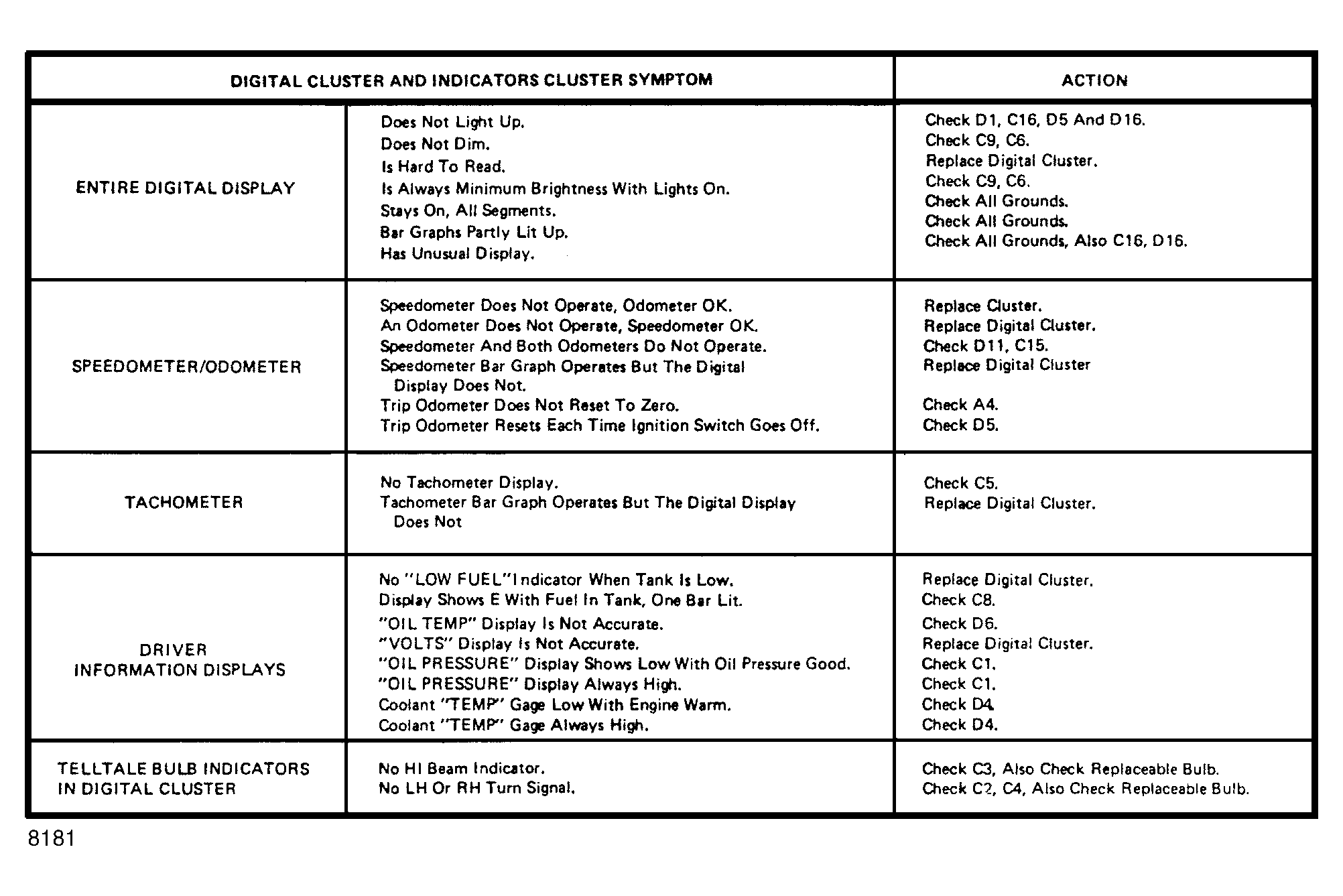

Fig 1: Corvette Electronic Instrument Panel Symptom Chart
G8181Courtesy of GENERAL MOTORS CORP.
