Chevette & 1000 W/2 Bbl., W/A/T, L/A/C. (Vin C)
Chevette & 1000 W/2 Bbl., W/A/T, L/A/C. (Vin C)

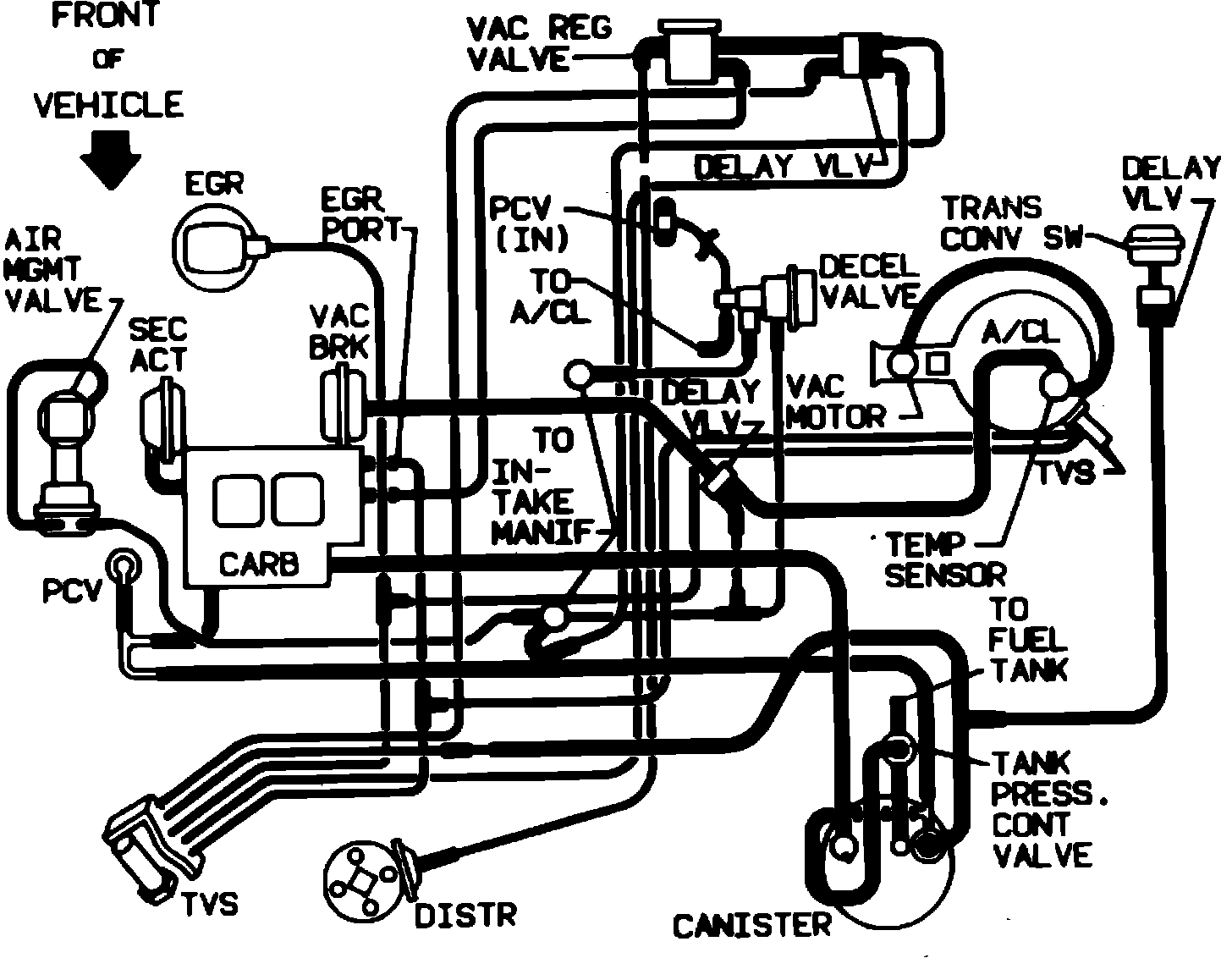

Fig. 1 Vacuum Hose Routing. 1987 Chevette & 1000 W/4-97 (1.6L) 2 Bbl., With A/T, Less A/C (VIN C):
