License Plate, Rear Marker & Tail Lamps

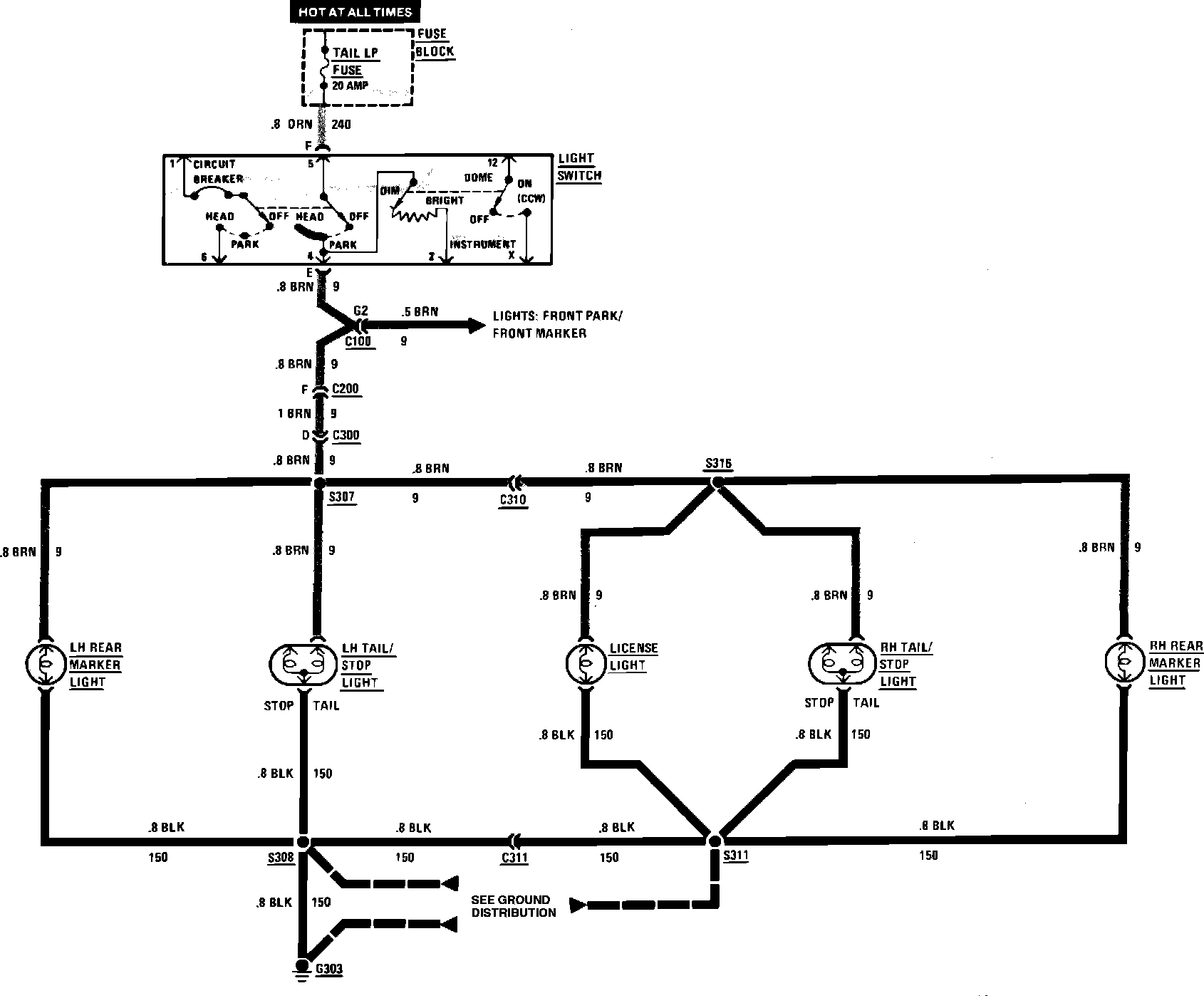

Exterior Lamps Wiring Circuit License (Rear Marker & Tail Lamps):
