Front Marker & Park, Hazard, Stop & Turn Lamps

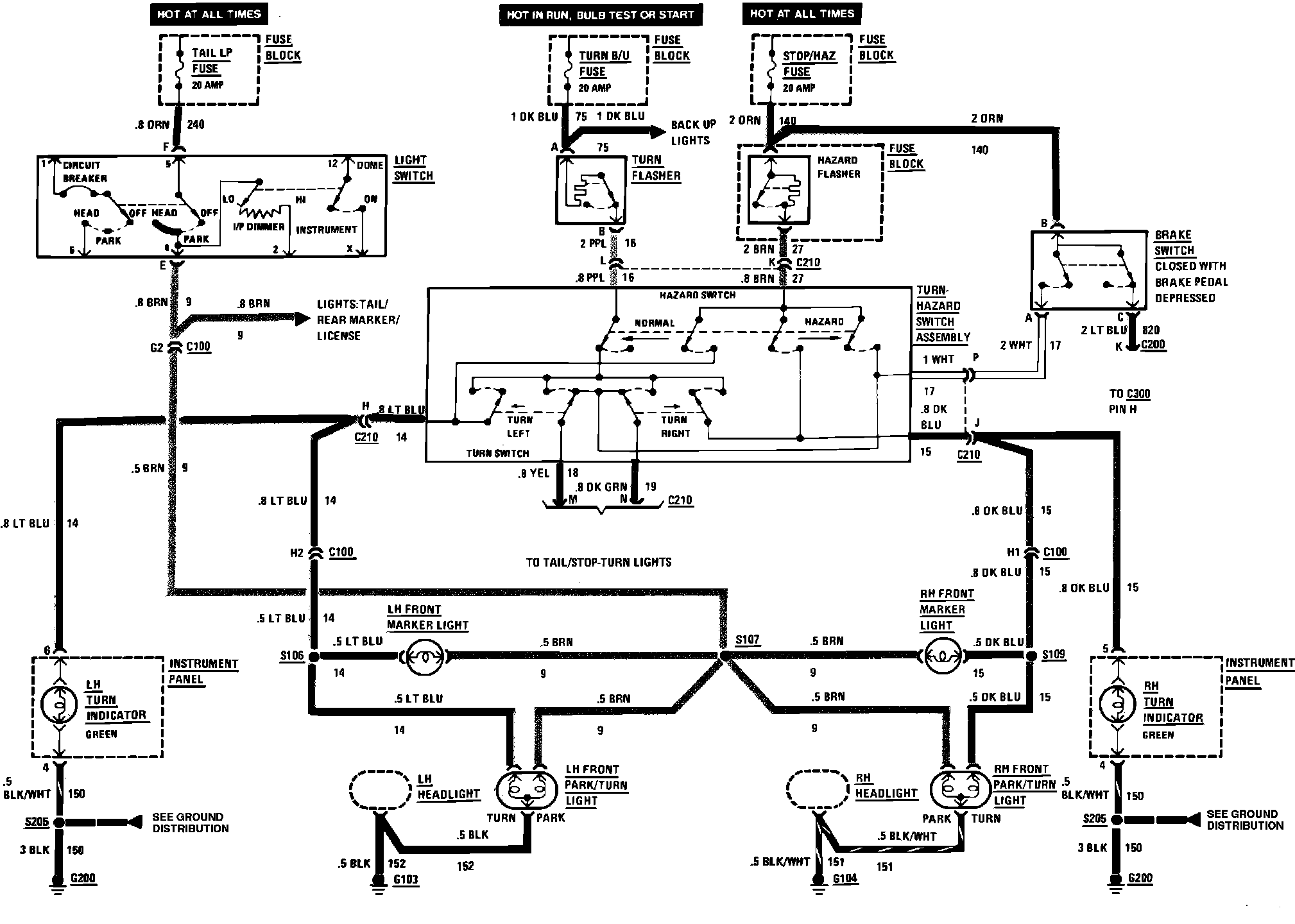

Exterior Lamps Wiring Circuit (Front Marker, Front Park, Hazard, Stop & Turn Lamps):



Exterior Lamps Wiring Circuit (Front Marker, Front Park, Hazard, Stop & Turn Lamps):
