Home >> Chevrolet >> 1987 >> Celebrity L4-151 2.5L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Safety Switch >> Diagrams >> Diagram Information and Instructions >> Symbol Identification

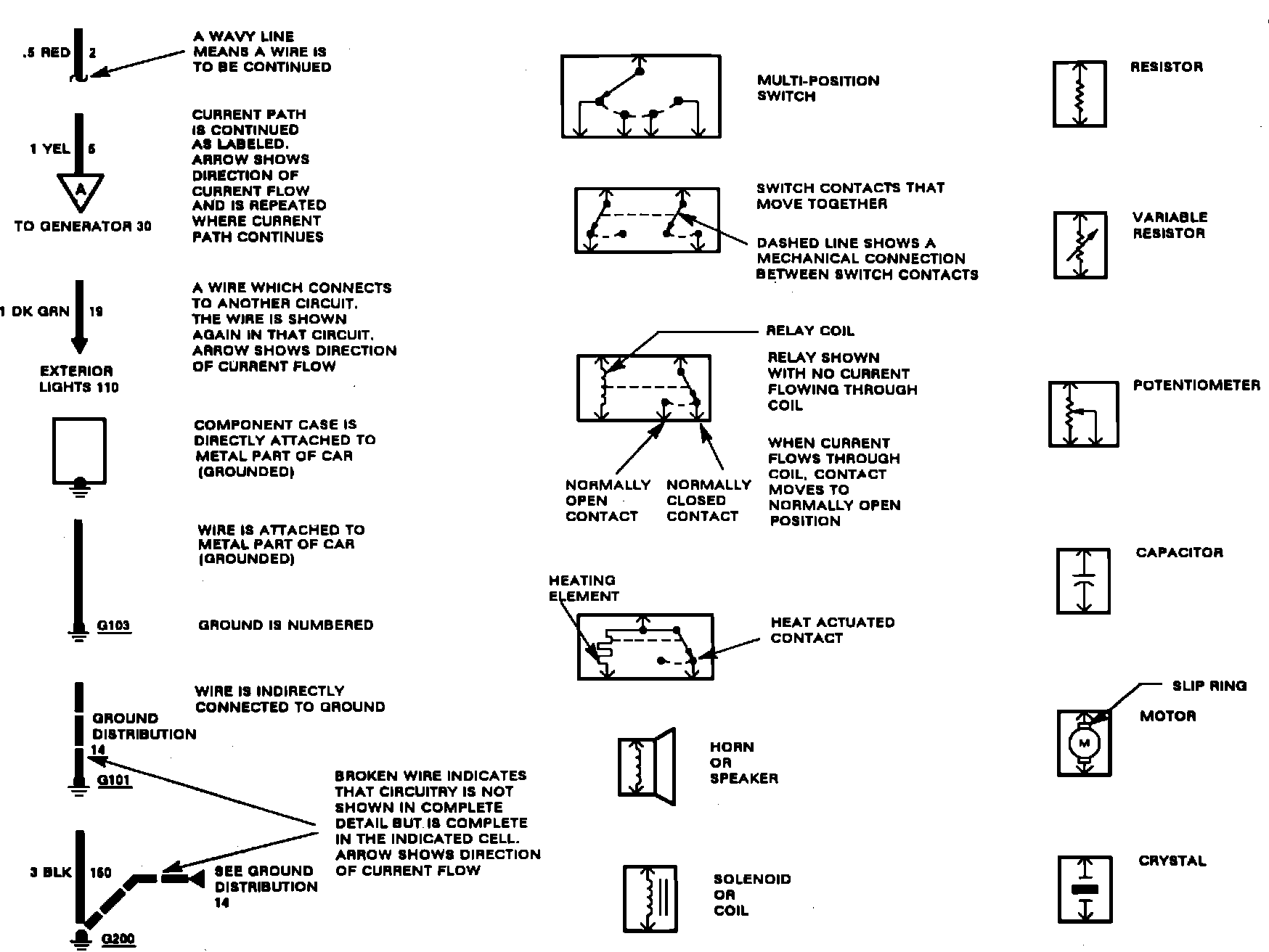

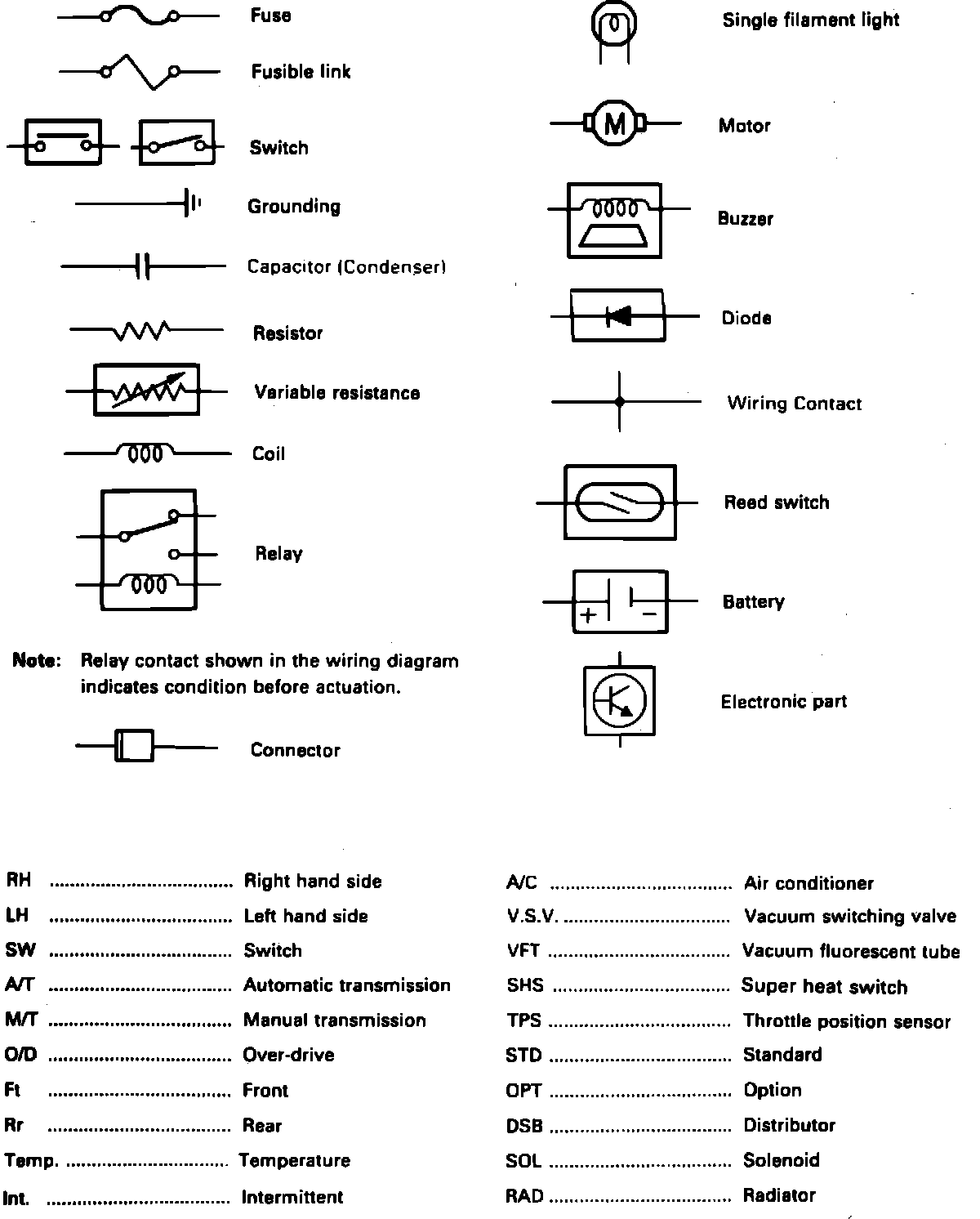

Symbol Identification

Symbol Identification:

Symbol Indentification:
