With Gauges Cluster

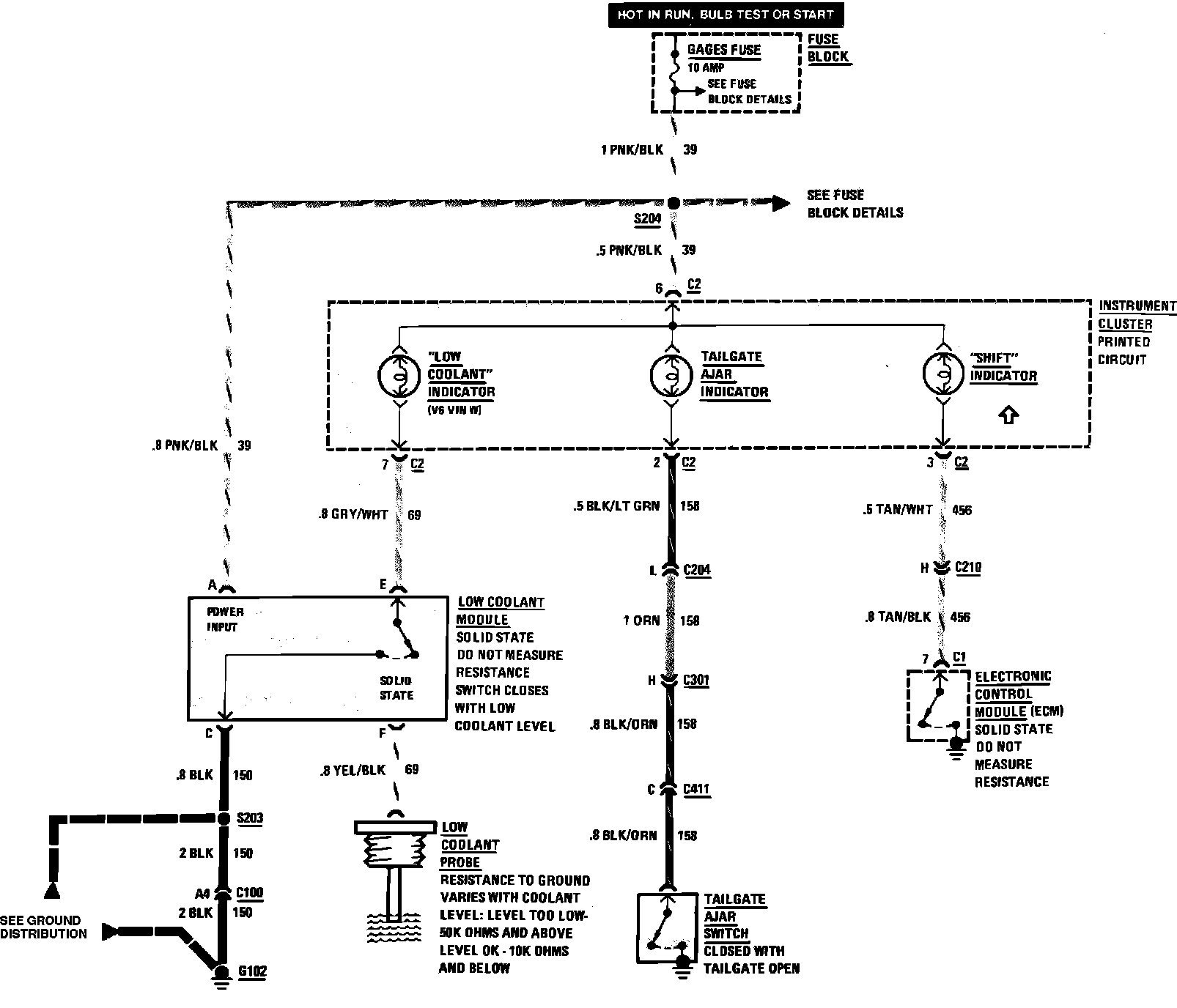

Instrument Panel Wiring Circuit (Gauges Cluster, Part 1 Of 3):



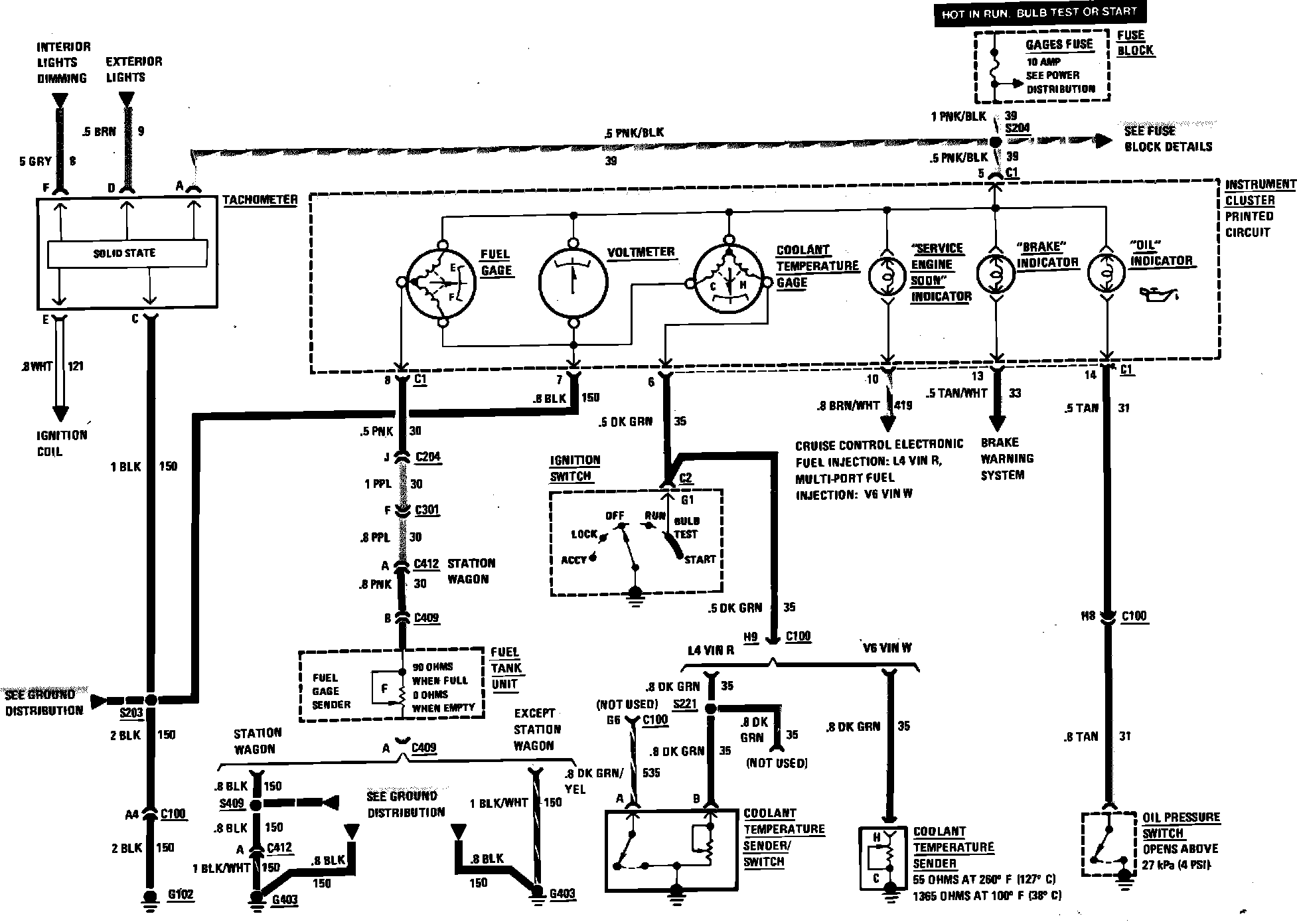

Instrument Panel Wiring Circuit (Gauges Cluster, Part 2 Of 3):



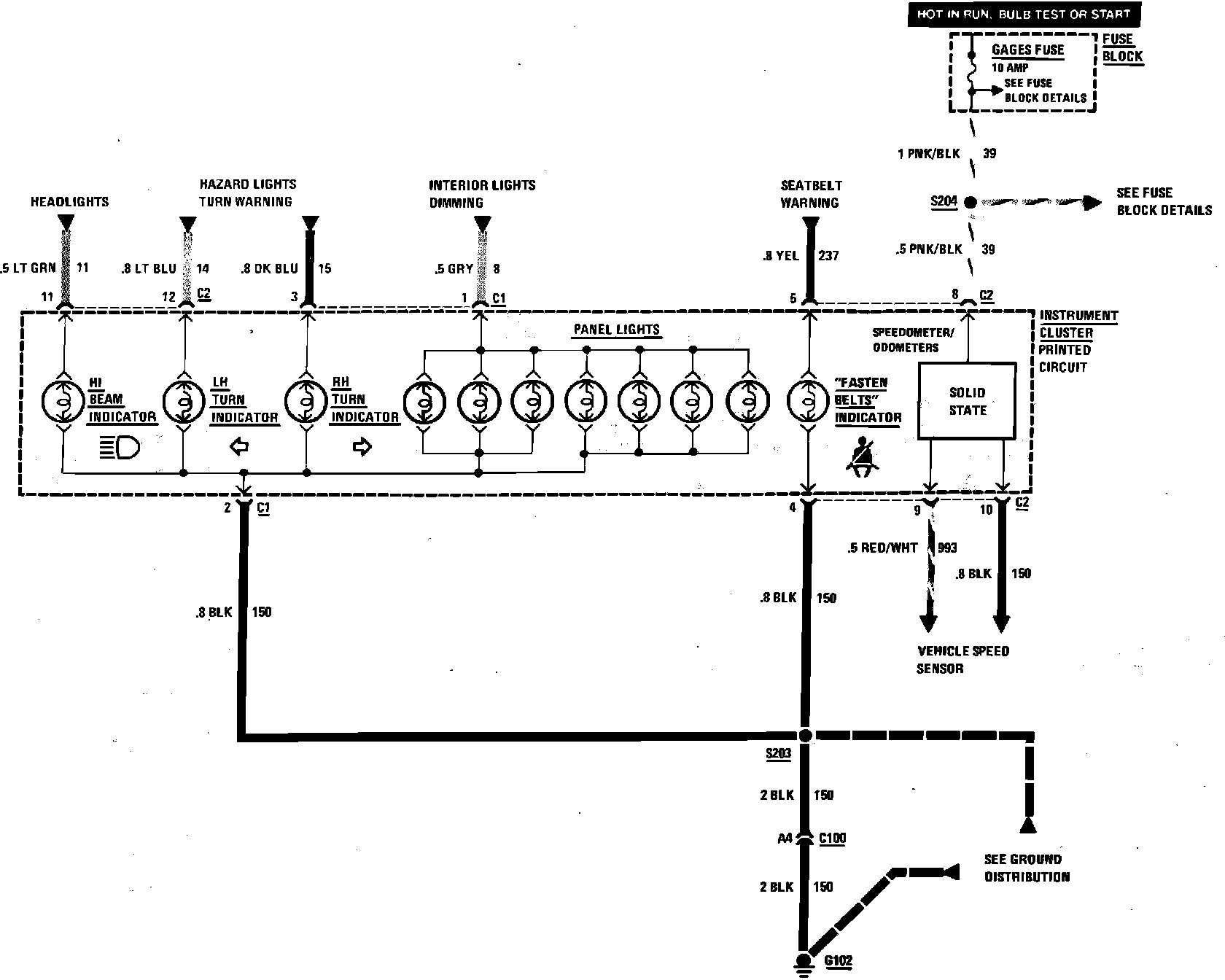

Instrument Panel Wiring Circuit (Gauges Cluster, Part 3 Of 3):
