Chevrolet
>>
1987
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
V6-173 (2.8L) PFI With A/T, Exc. Cam & Firebird (Vin S) (Vin W)
V6-173 (2.8L) PFI With A/T, Exc. Cam & Firebird (Vin S) (Vin W)

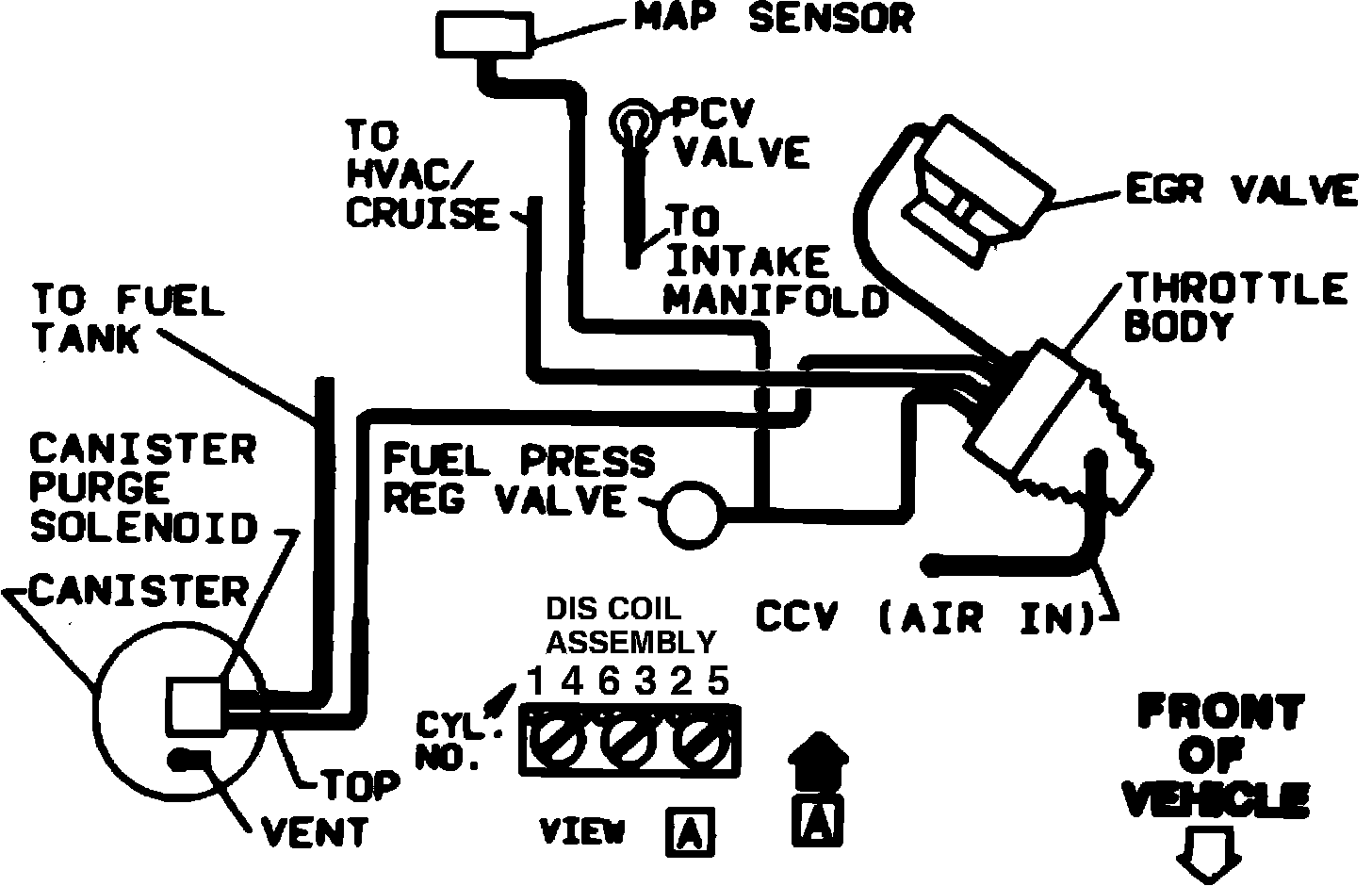

Fig. 16 Vacuum Hose Routing. 1987 V6-173 (2.8L) PFI With A/T, Exc. Camaro & Firebird (VIN S) (VIN W):
