V6-173 (2.8L) PFI W/M/T, Exc. Cam & Firebird (Vin S&W)
V6-173 (2.8L) PFI W/M/T, Exc. Cam & Firebird (Vin S&W)

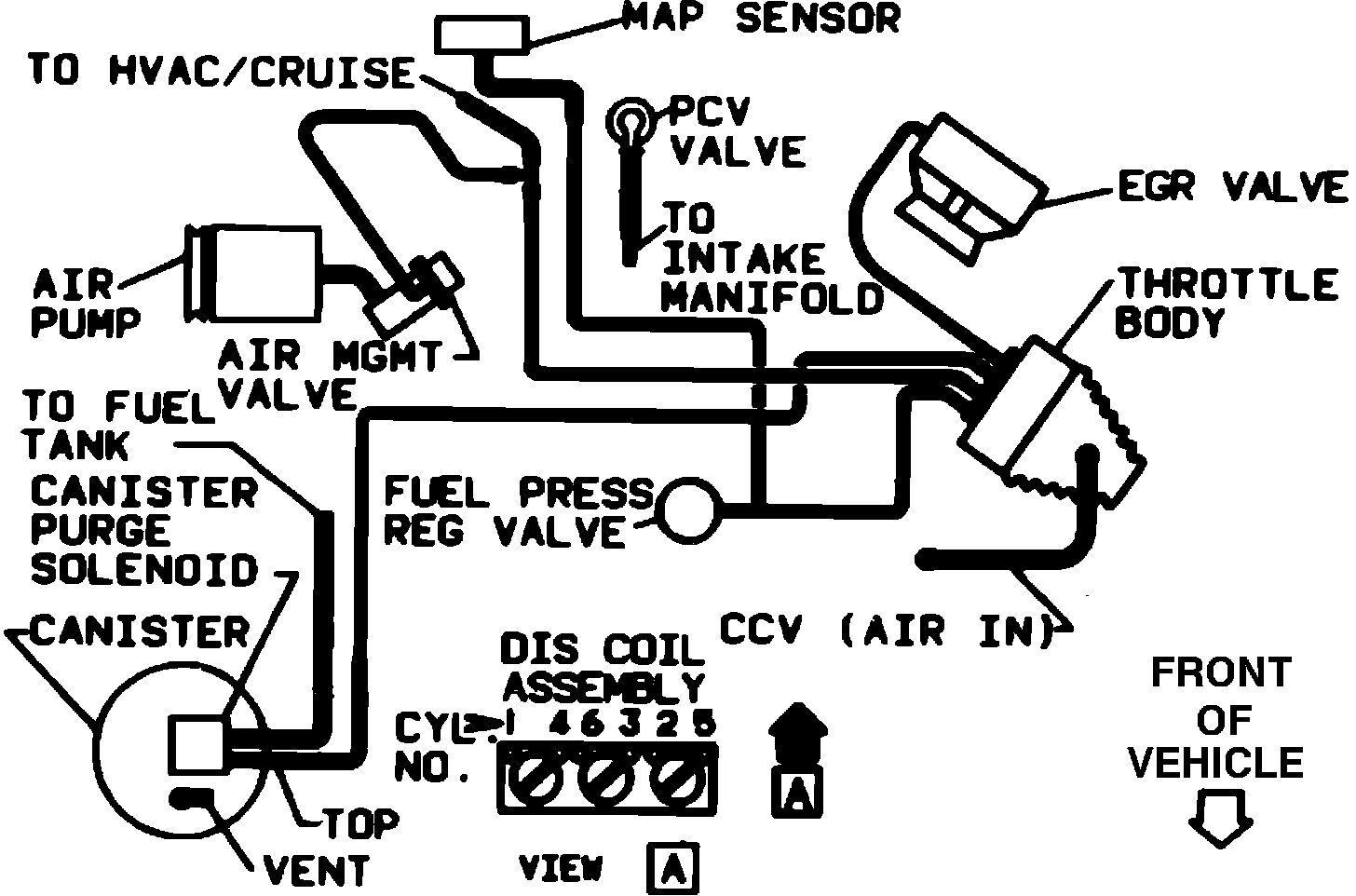

Fig. 17 Vacuum Hose Routing. 1987 V6-173 (2.8L) PFI With M/T, Exc. Camaro & Firebird (VIN S) (VIN W):
