Chevrolet
>>
1987
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Figure 11 V6-173 (2.8L) PFI, (Vin 9)
Figure 11 V6-173 (2.8L) PFI, (Vin 9)

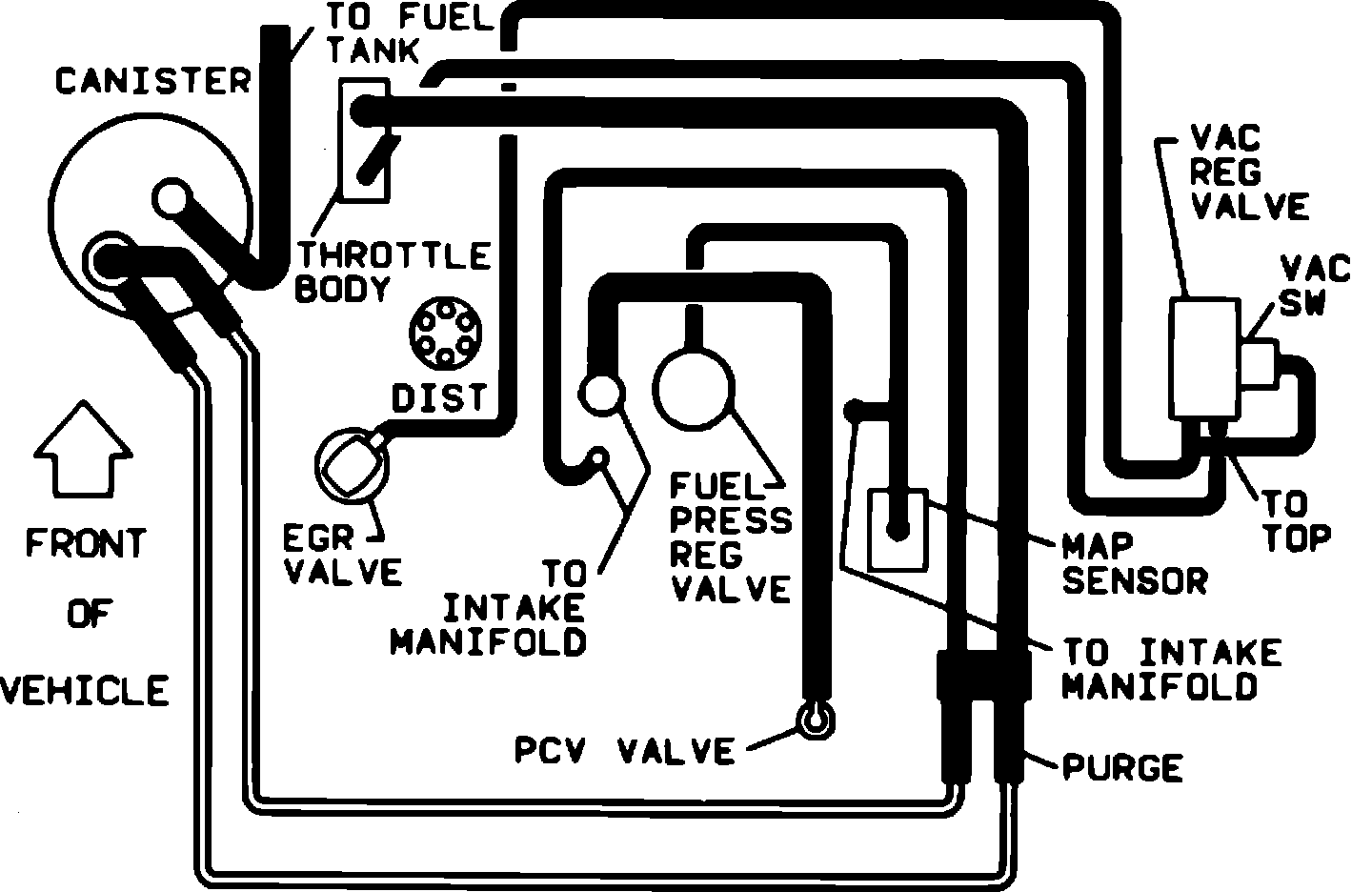

Fig. 11 Vacuum Hose Routing. 1987 V6-173 (2.8L) PFI, (VIN 9):
