R/S & Z24 Hzd, Marker, PK, Stop & Turn

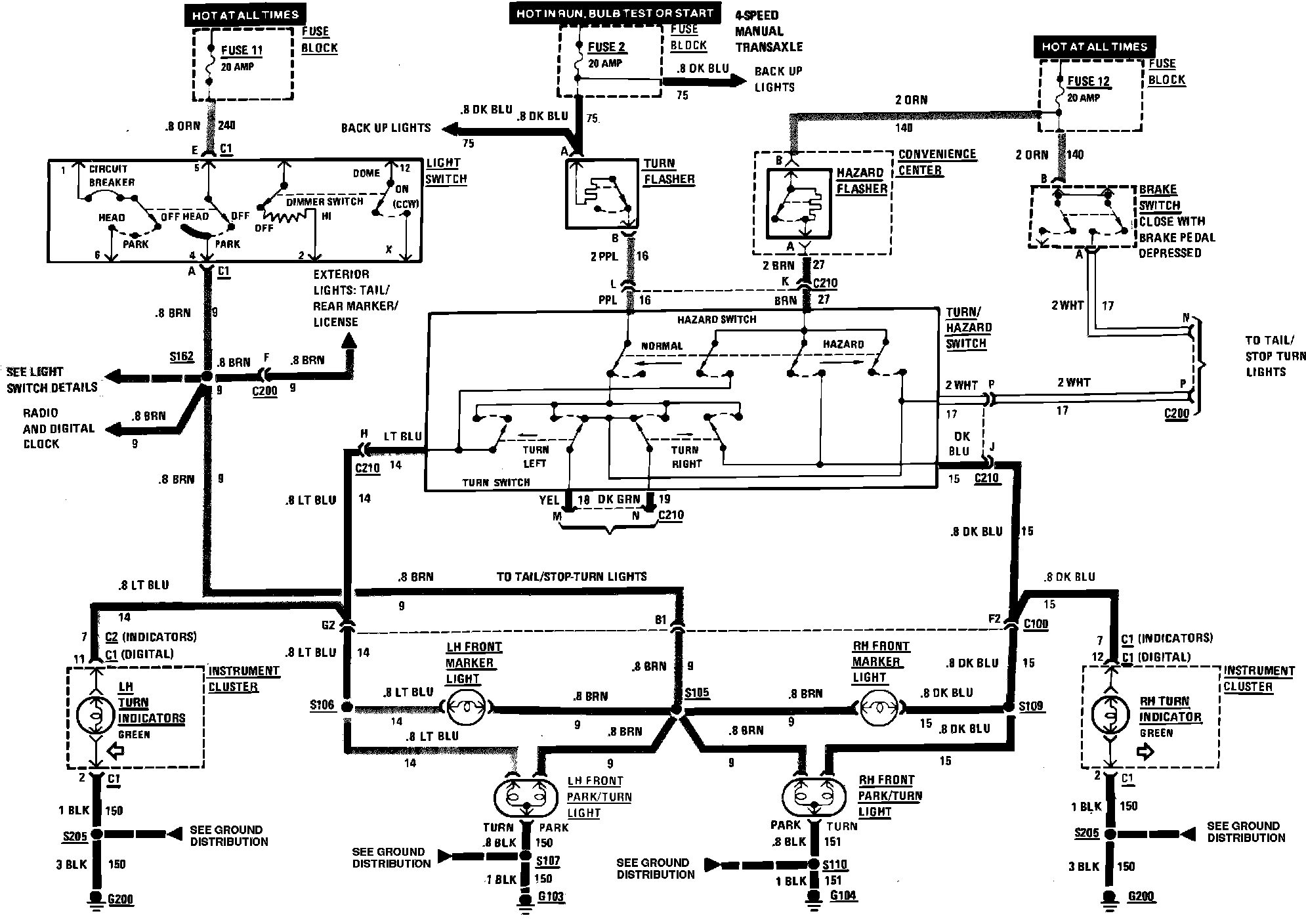

Fig. 67 Exterior Lamp Wiring Circuit (Hazard, Front Marker, Front Park, Stop & Turn (R/S & Z24):



Fig. 66 Exterior Lamp Wiring Circuit (Hazard, Front Marker, Front Park, Stop & Turn (Except Wagon):
