Cavalier & CS Hzd, Marker, Park, Stop & Turn Lamps

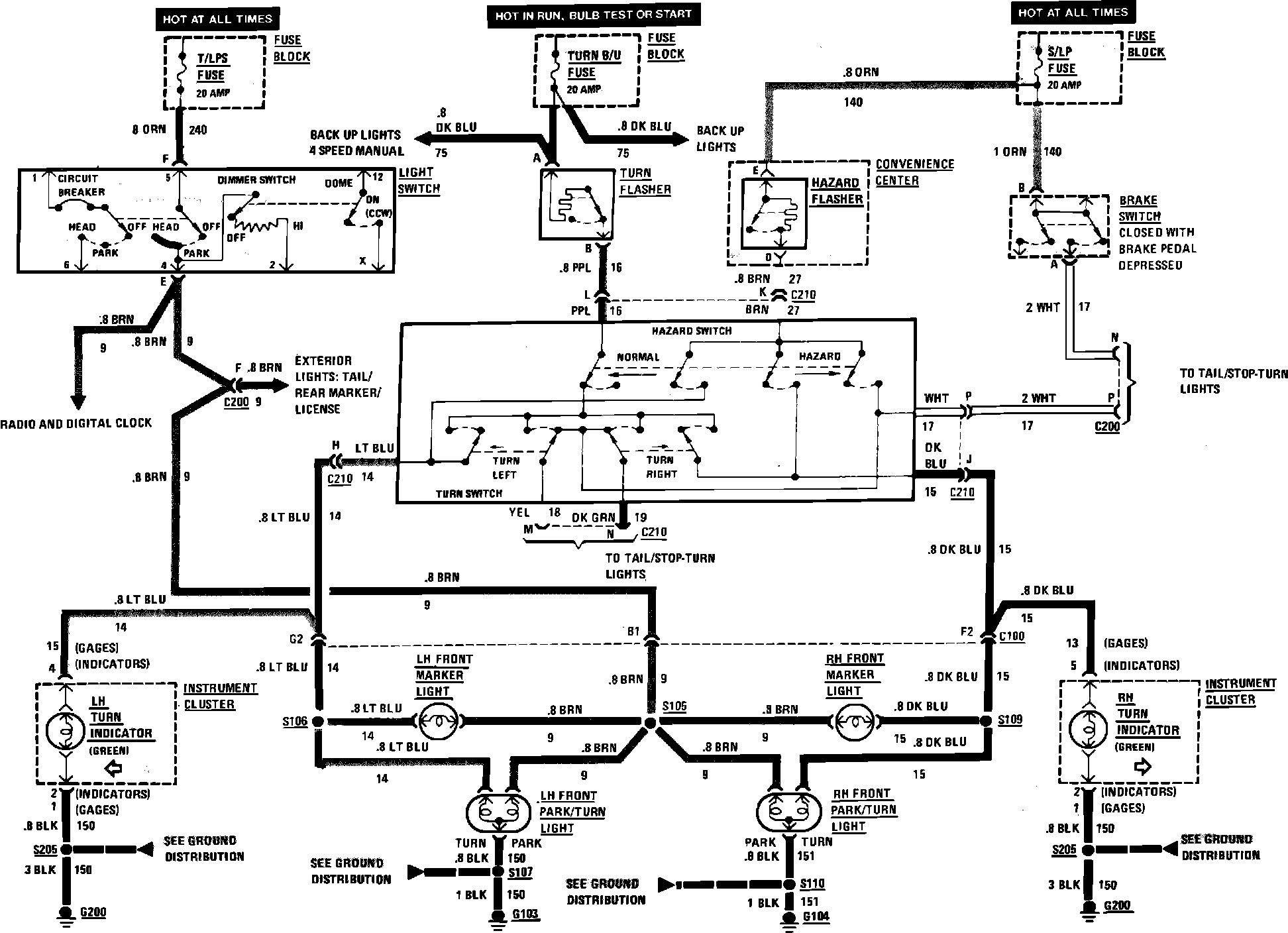

Fig. 66 Exterior Lamp Wiring Circuit (Hazard, Front Marker, Front Park, Stop & Turn:



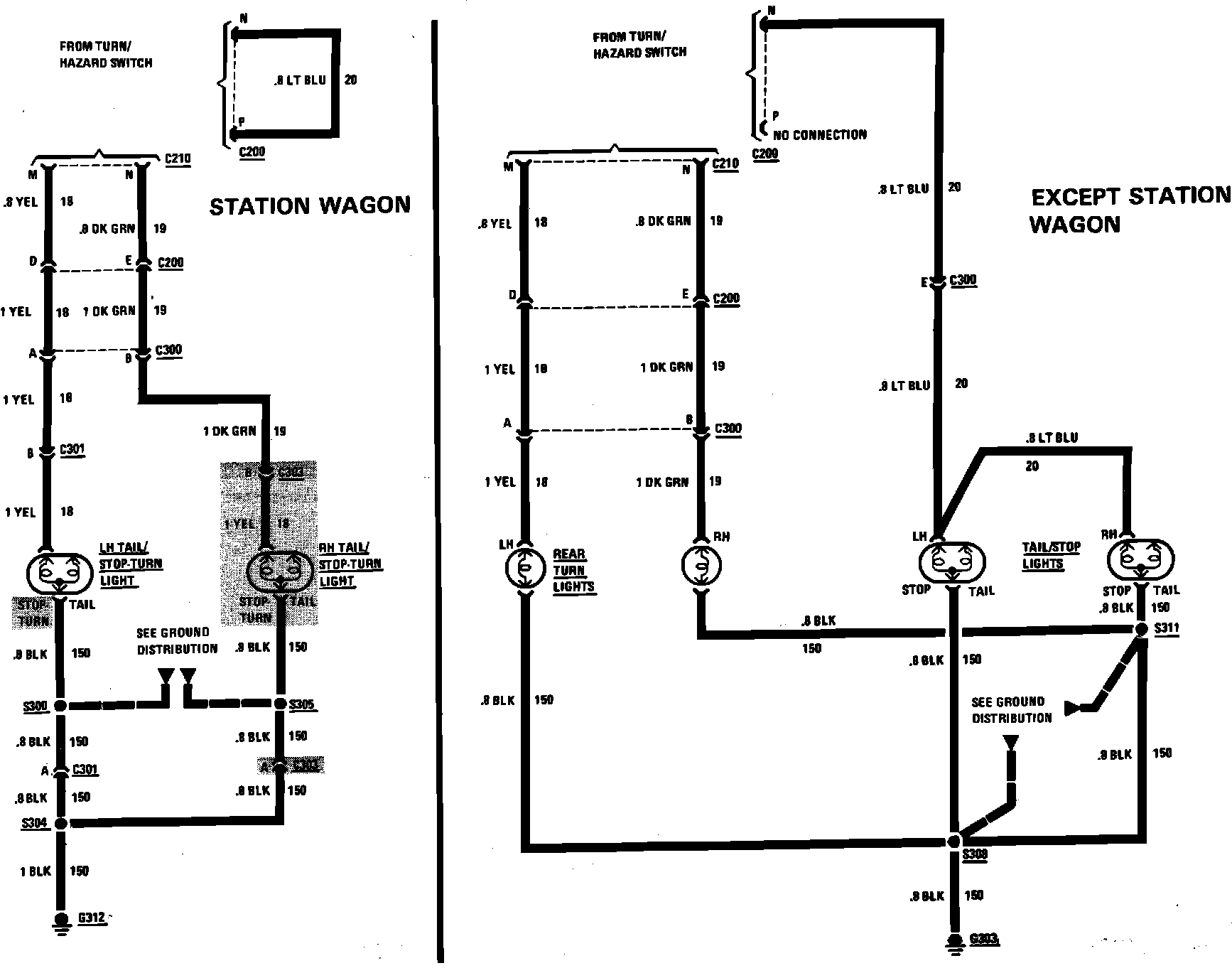

Fig. 66 Exterior Lamp Wiring Circuit (Hazard, Front Marker, Front Park, Stop & Turn (Except Wagon):
