Chevrolet
>>
1987
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
With Gauges Cluster
>>
Indicators
Indicators

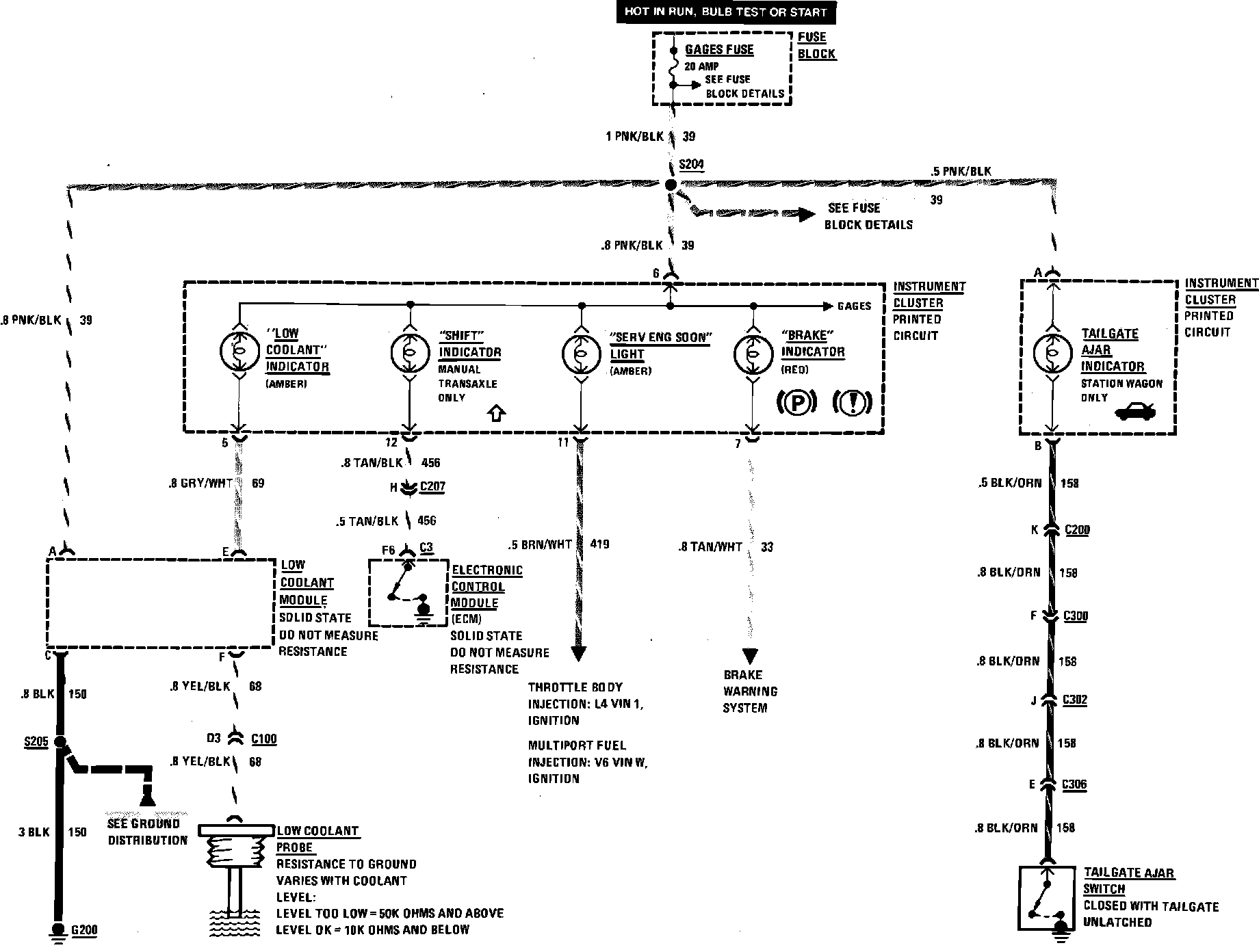

Fig. 185 Instrument Panel Gages Cluster Indicator Wiring Circuit (Part 1 Of 2):

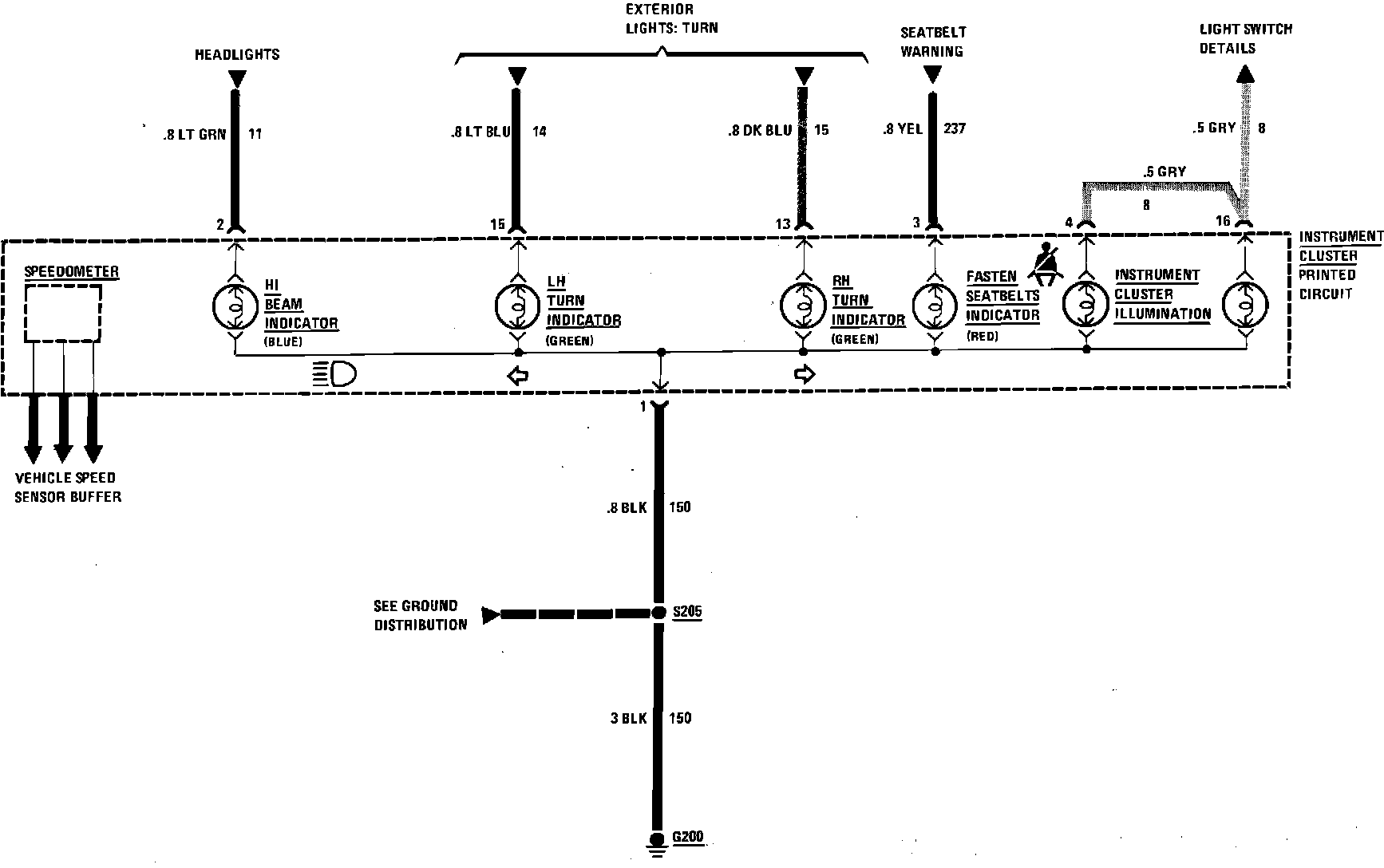

Fig. 185 Instrument Panel Gages Cluster Indicator Wiring Circuit (Part 2 Of 2):
