Cavalier R/S & Z24 2 Door, Part 2 of 3
Cavalier R/S & Z24 2 Door, Part 2 of 3

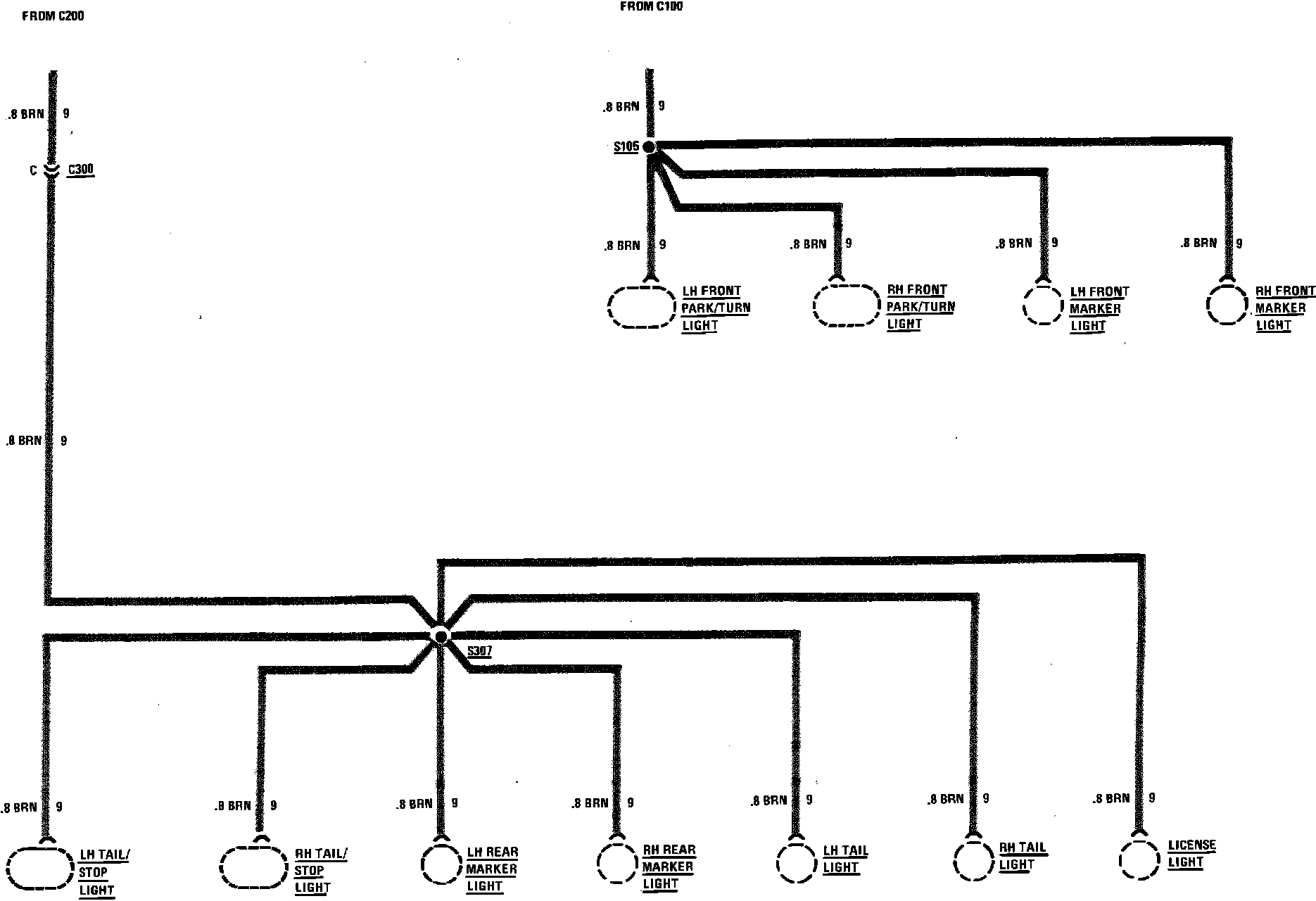

Fig. 214 Light Switch Details Wiring Circuit (Part 2 Of 3):
