Cavalier & Cavalier CS Sedan & Wagon, Part 2 of 3
Cavalier & Cavalier CS Sedan & Wagon, Part 2 of 3

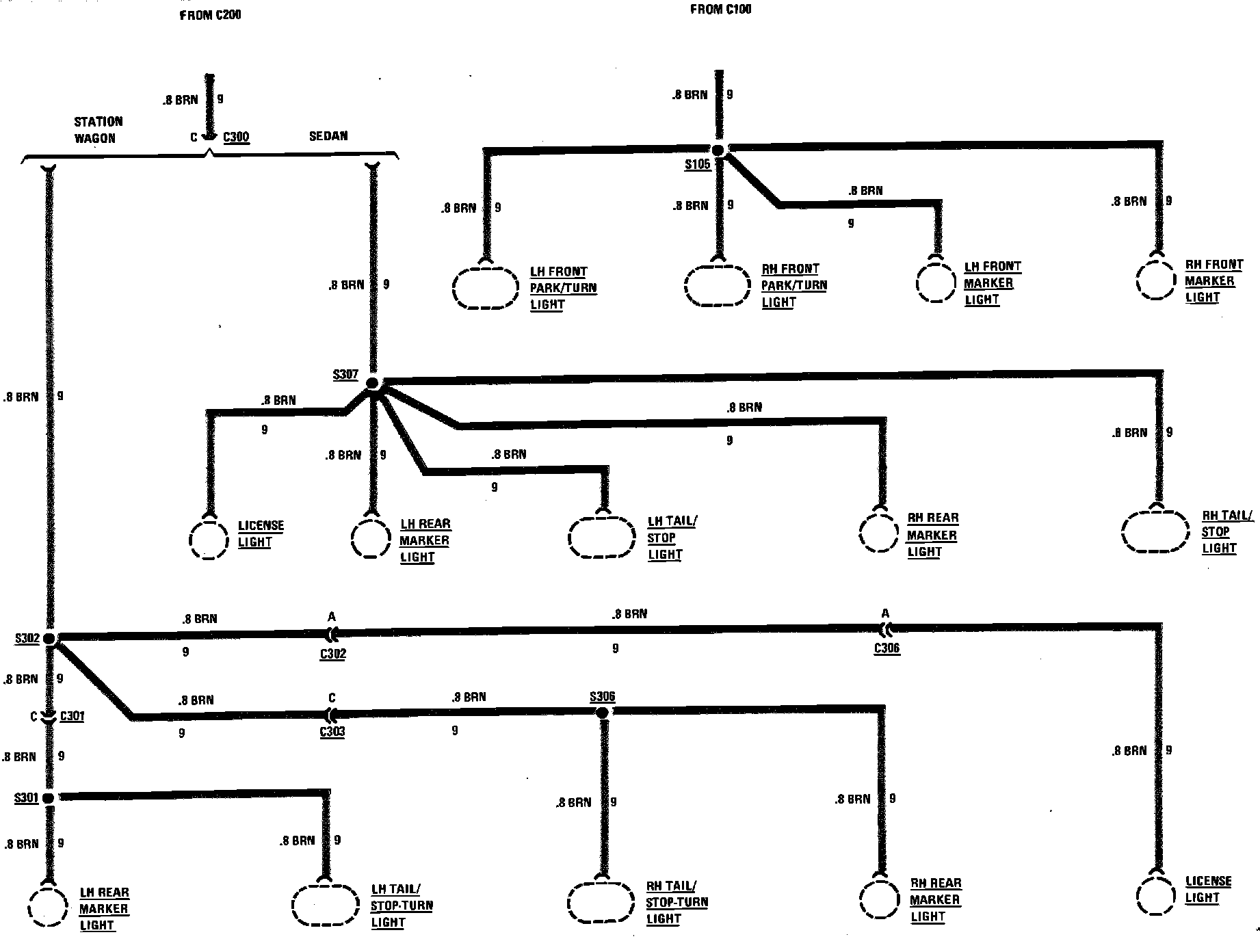

Fig. 213 Light Switch Details Wiring Circuit (Part 2 Of 3):
