Home >> Chevrolet >> 1986 >> Chevette L4-98 1.6L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Stepped Speed Control >> Without Air Conditioning

Without Air Conditioning

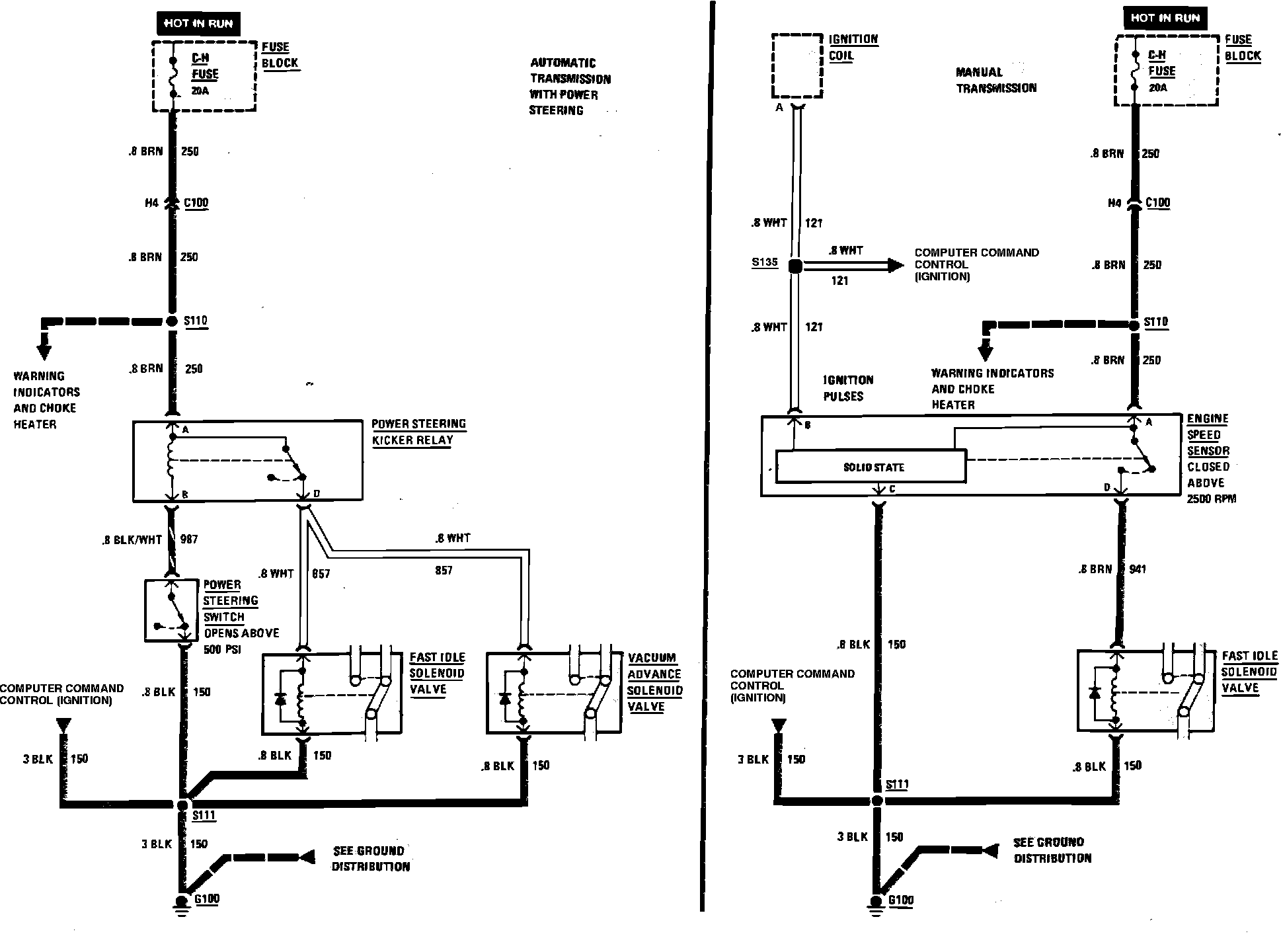

Computer Command Control (Stepped Speed Control, Less A/C):
