Extension Oil Seal and Bushing Replace

1. Pry oil seal from extension.

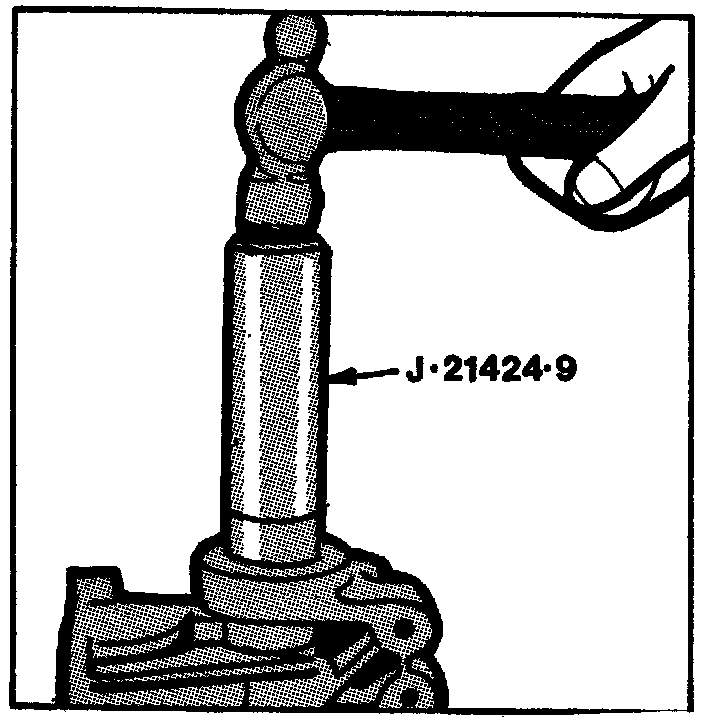

2. Using tools J-21524-9 and J-8092 drive bushing out of extension housing, then using same tools drive bushing into housing.

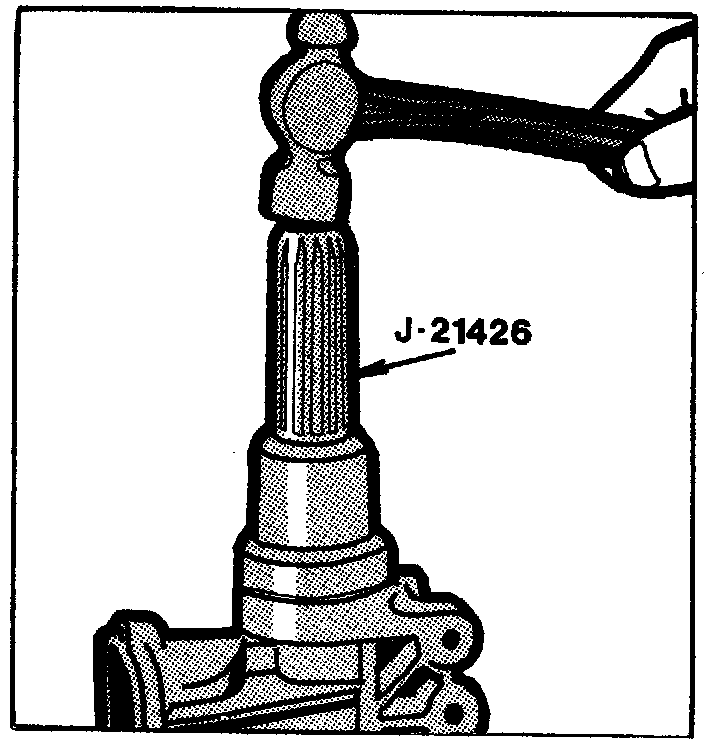

3. Coat inside diameter of bushing and seal with transmission lubricant, then using tool J-21 426 install new seal.
