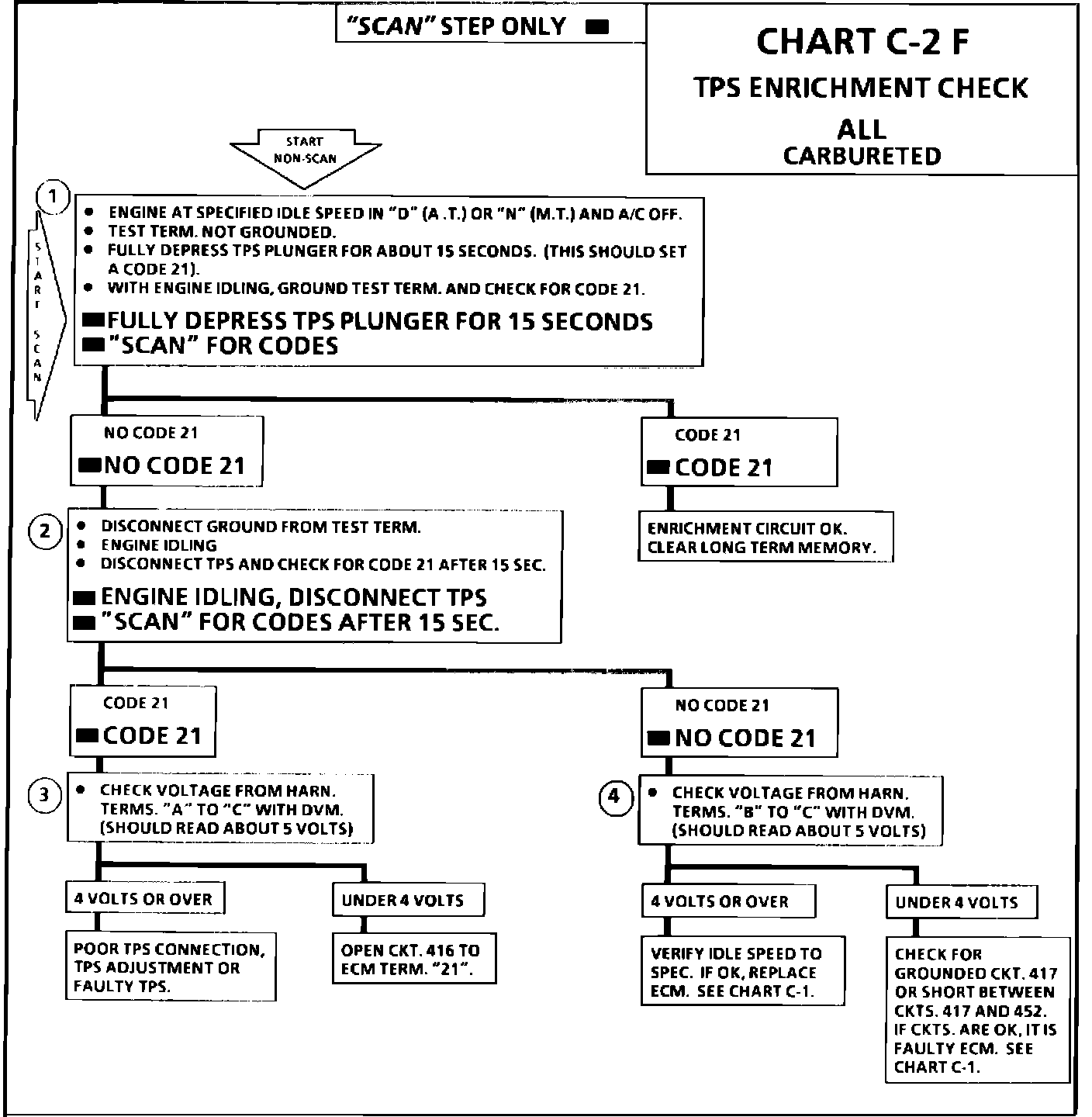

Chart C-2F

TPS ENRICHMENT CHECK:




CLEAR CODES AND CONFIRM "CLOSED LOOP" OPERATION AND NO "SERVICE ENGINE SOON" LIGHT
