Throttle Position Sensor: Locations

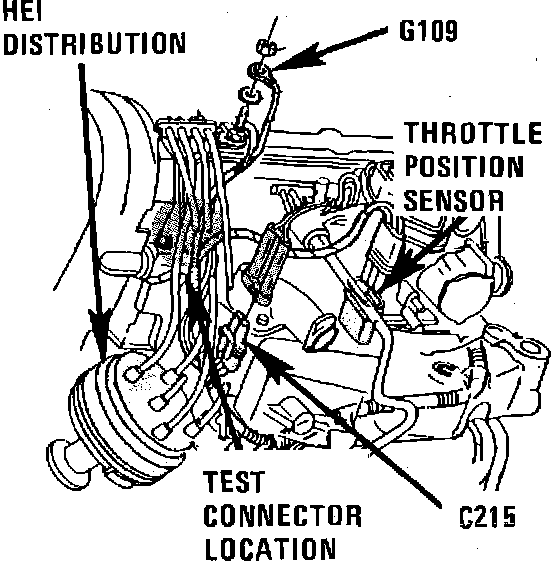

LH Side Of Engine.:




LH Side Of Engine Above Distributor

Applicable to: 1986 Chevette & 1000
