Home >> Chevrolet >> 1986 >> Chevette L4-111 1.8L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc

Radio, Stereo, and Compact Disc

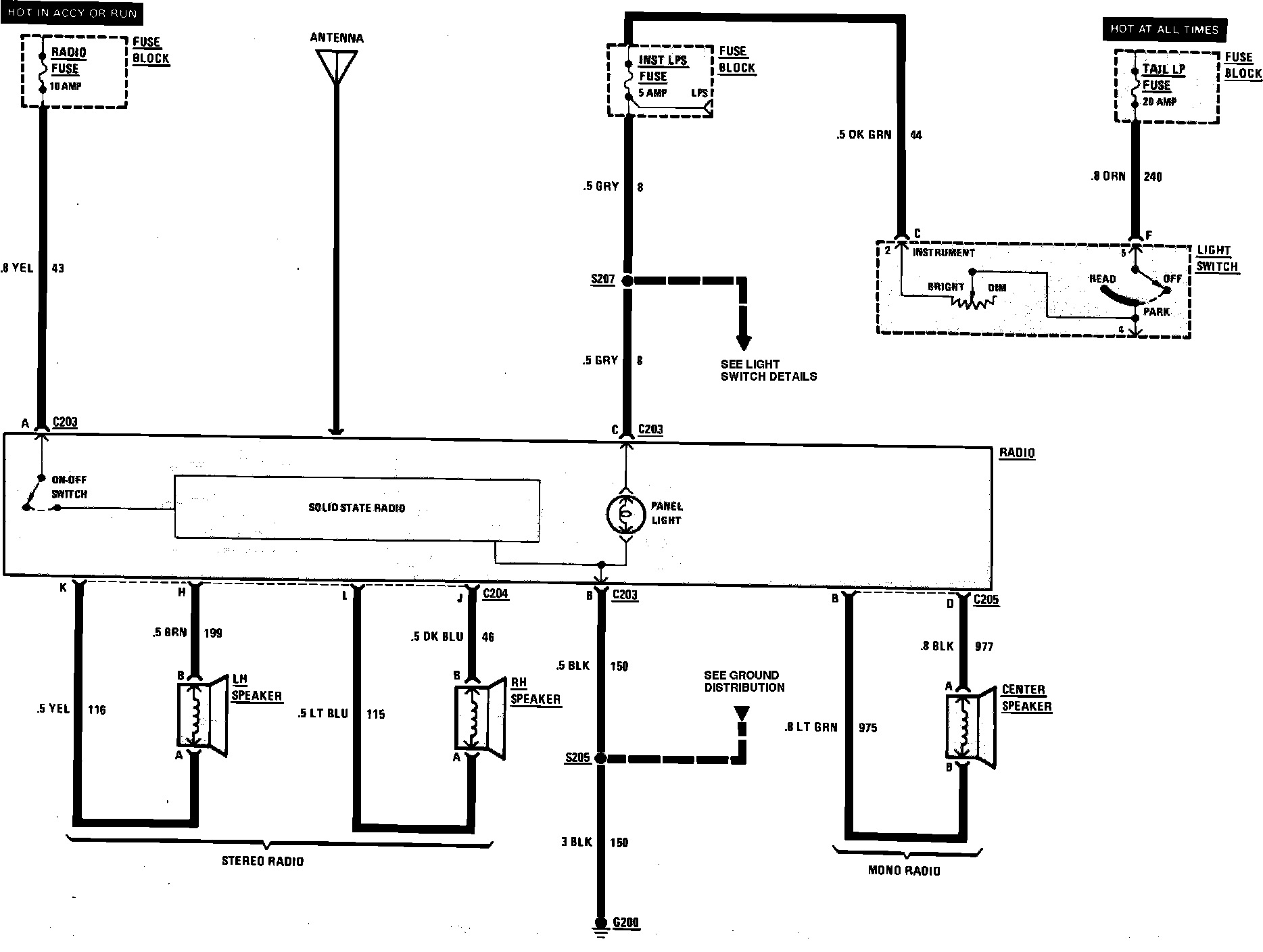

Radio Wiring Circuit:
