Chevette L4-111 1.8L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Lamp
Brake Lamp

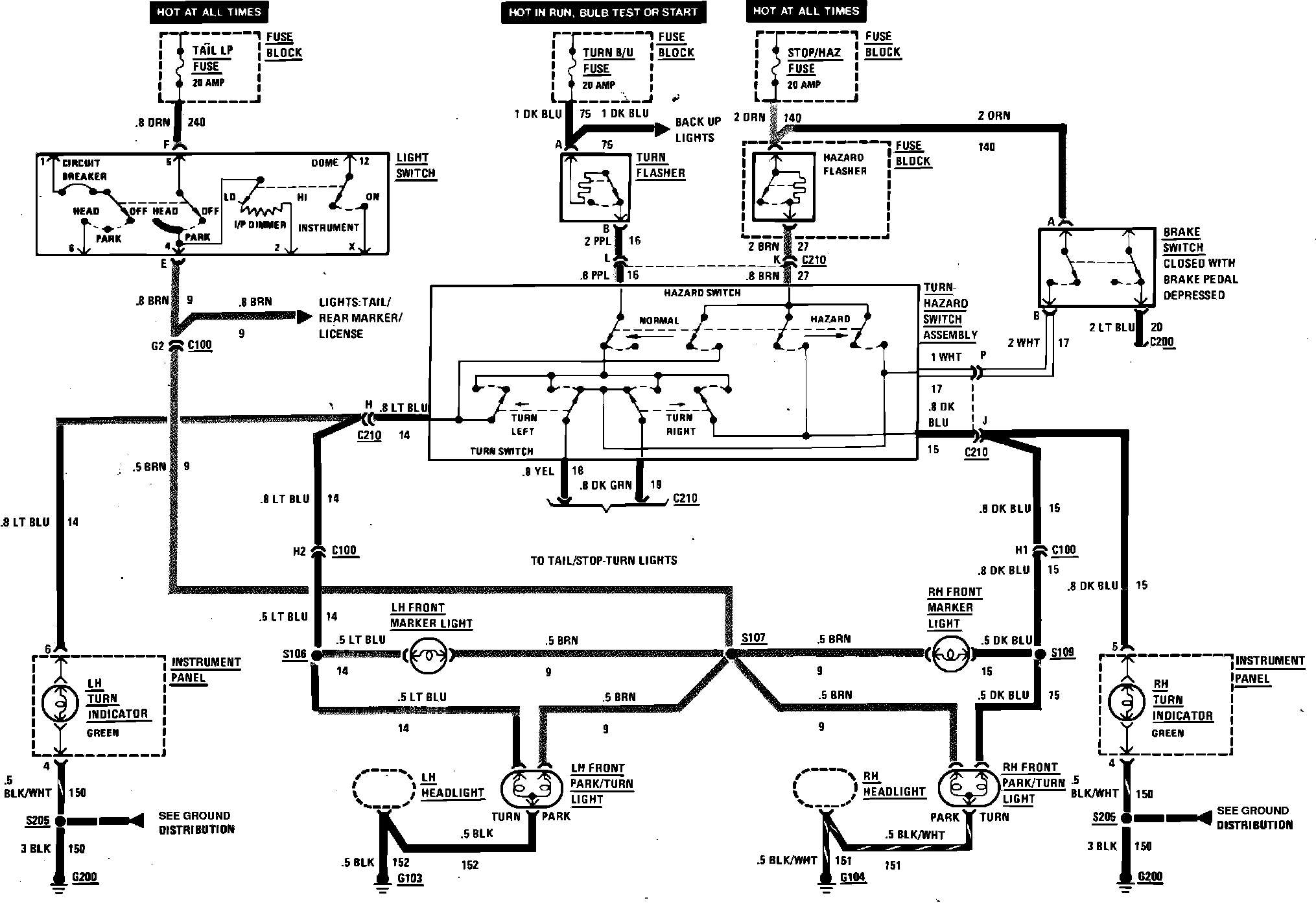

Hazard, Front Park, Front Marker, Stop & Turn Signal Lamps Wiring Circuit (Part 1 Of 2):
Hazard, Front Park, Front Marker, Stop & Turn Signal Lamps Wiring Circuit (Part 2 Of 2):
