Chevrolet
>>
1986
>>
Chevette L4-111 1.8L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
Audible Warning Device

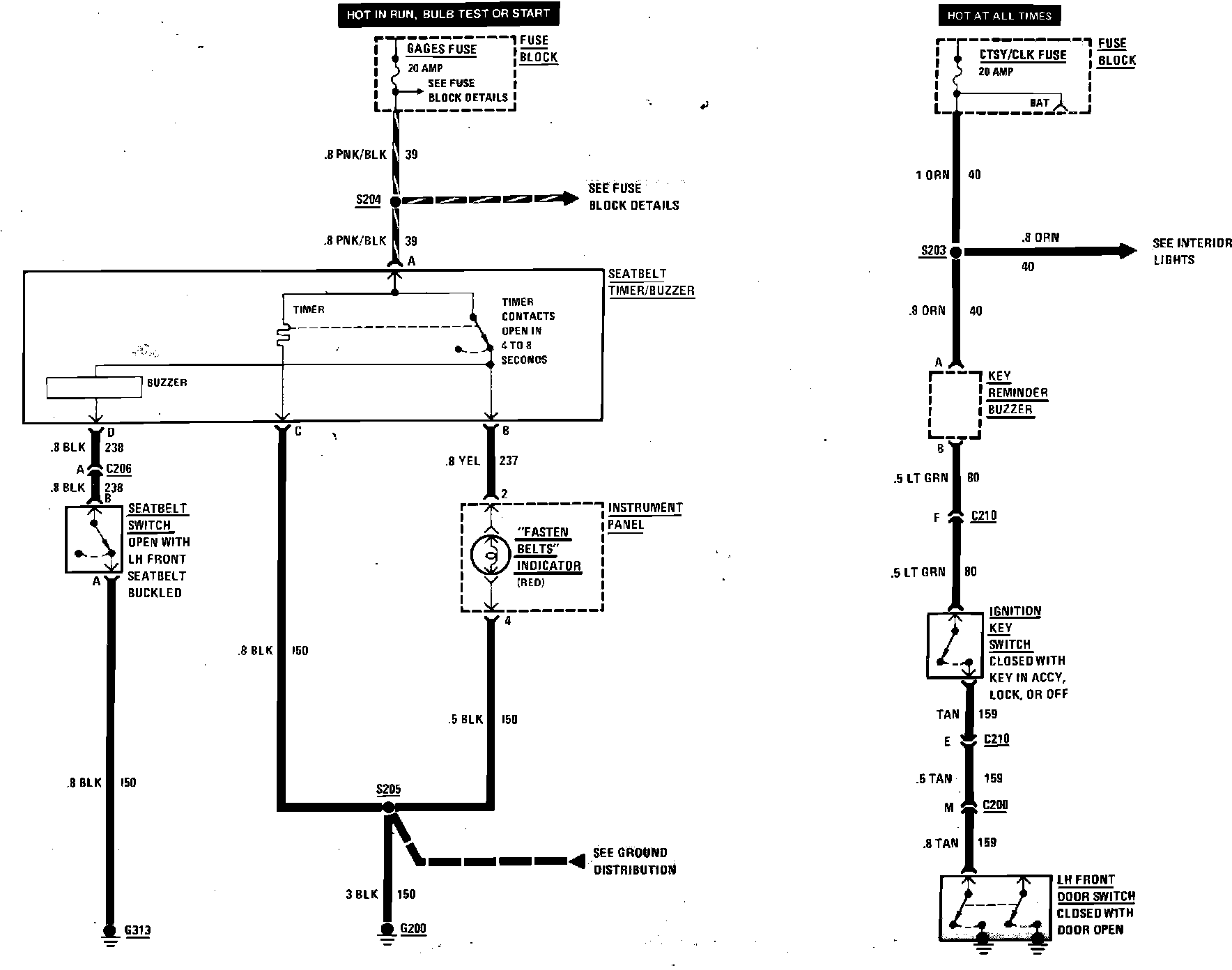

Alarms & Warning Indicators Wiring Circuit:
