Wiper Motor: Service and Repair

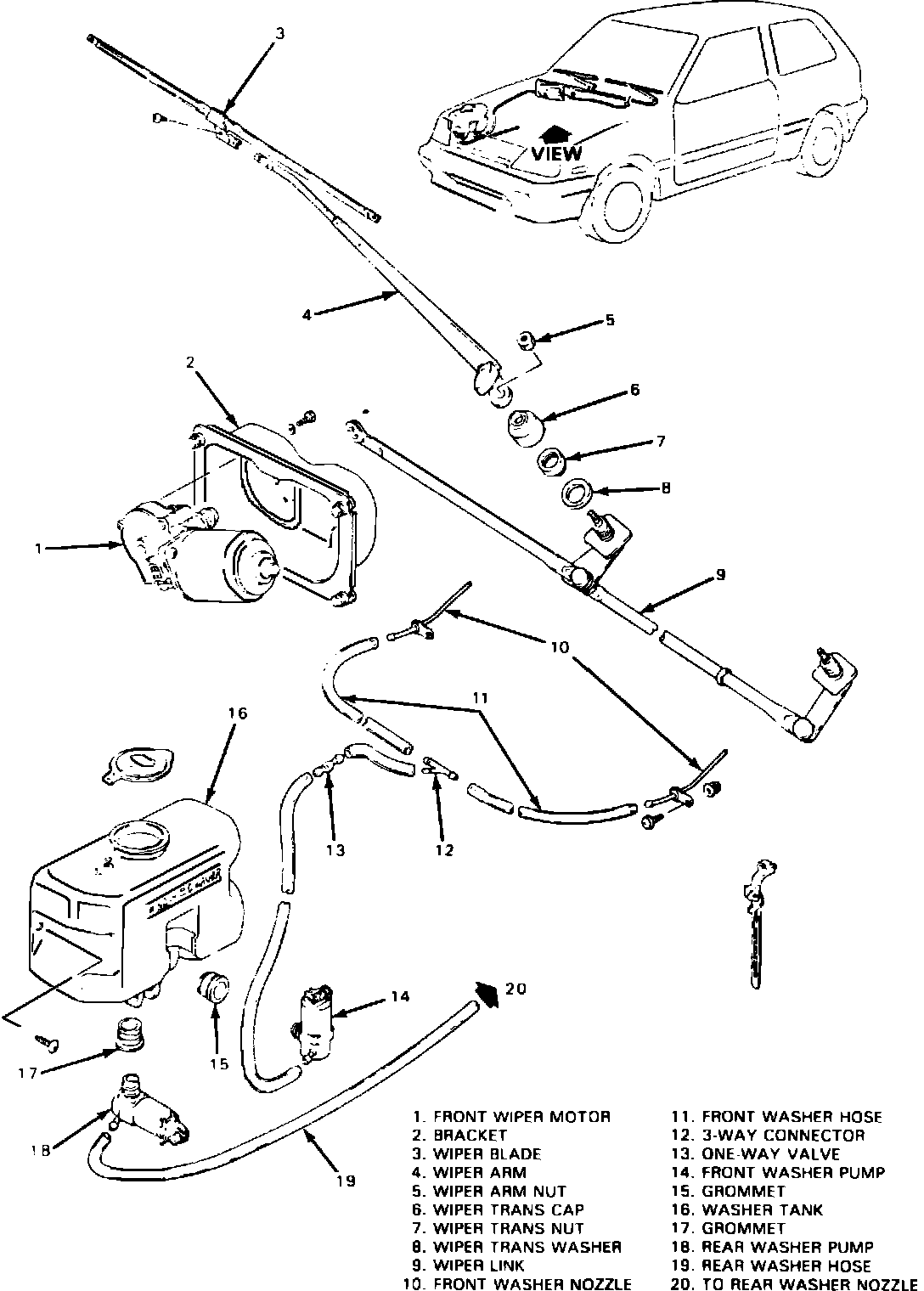

Fig. 7 Windshield wiper/washer motor & linkage assembly:





WINDSHIELD WIPER MOTOR EXPLODED VIEW
