Wheel Bearing Replace - Front

FRONT WHEEL BEARINGS AND/OR HUB

Knuckle And/Or Bearing:

Front knuckle seal
Use tool J34881 to install seal.

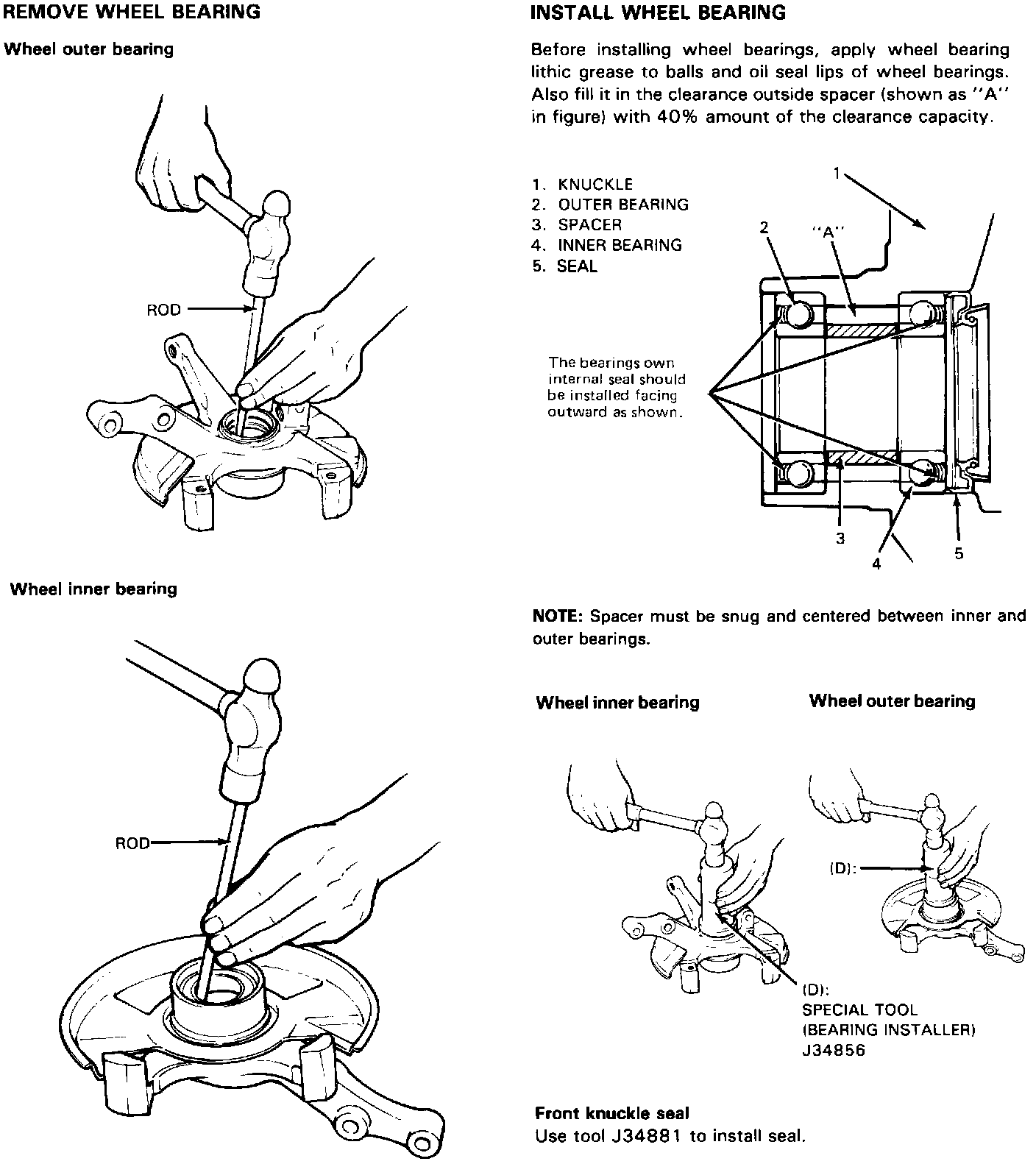

Remove Wheel Bearing
1. Wheel outer bearing.
2. Wheel inner bearing.

Install Wheel Bearing
Before installing wheel bearings, apply wheel bearing lithic grease to balls and oil seal lips of wheel bearings. Also fill it in the clearance outside spacer (shown as "A" in image) with 40% amount of the clearance capacity.
