Vacuum on Low Side/Low Pressure on High Side/Frost on Piping - TXV System
Vacuum on Low Side/Low Pressure on High Side/Frost on Piping - TXV System

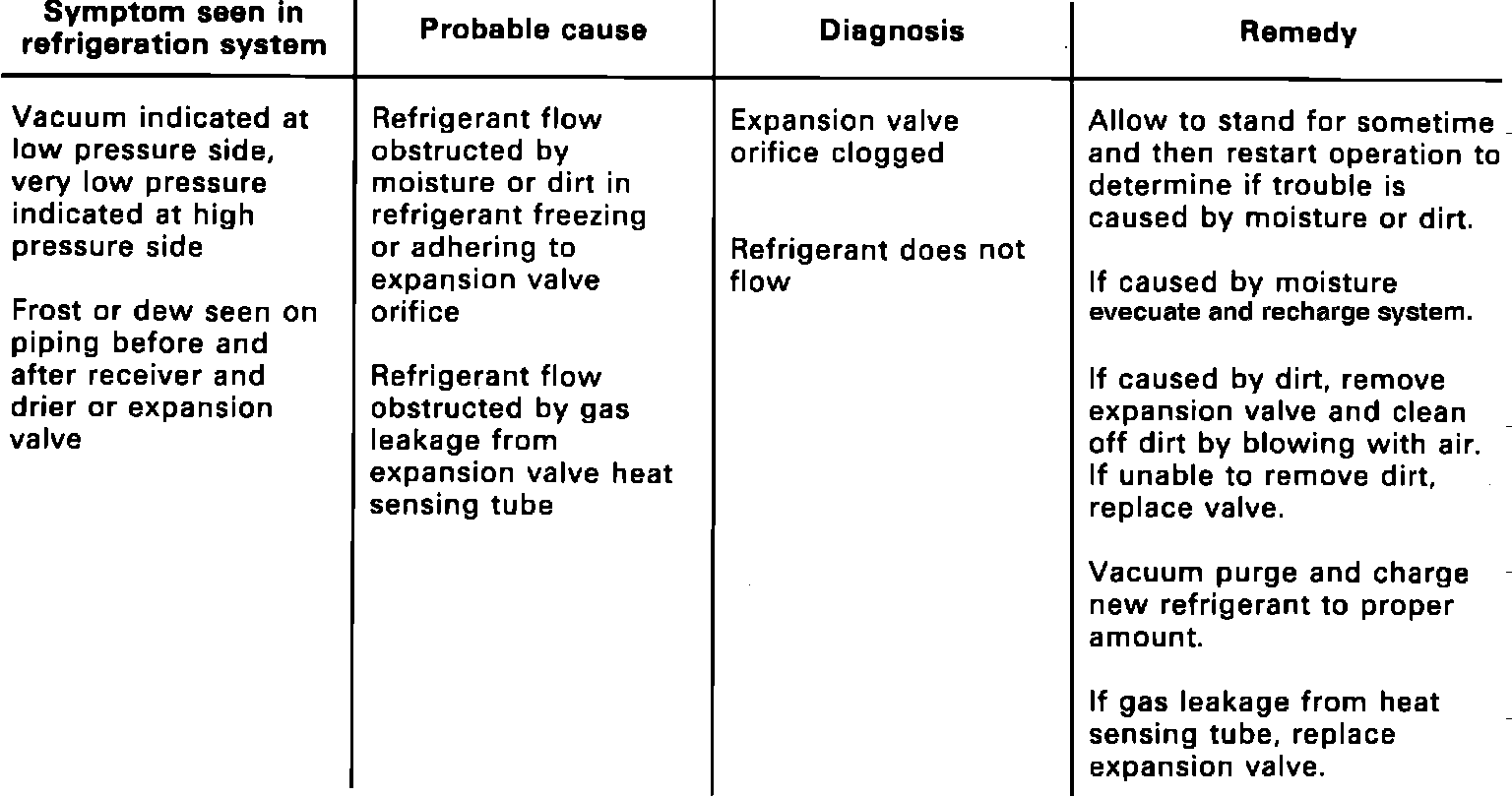

Fig. 26c A/C cooling system diagnosis (Part 3 of 3).:
