Sprint L3-61 1.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Refrigerant Pressure High/Low - TXV System
Refrigerant Pressure High/Low - TXV System

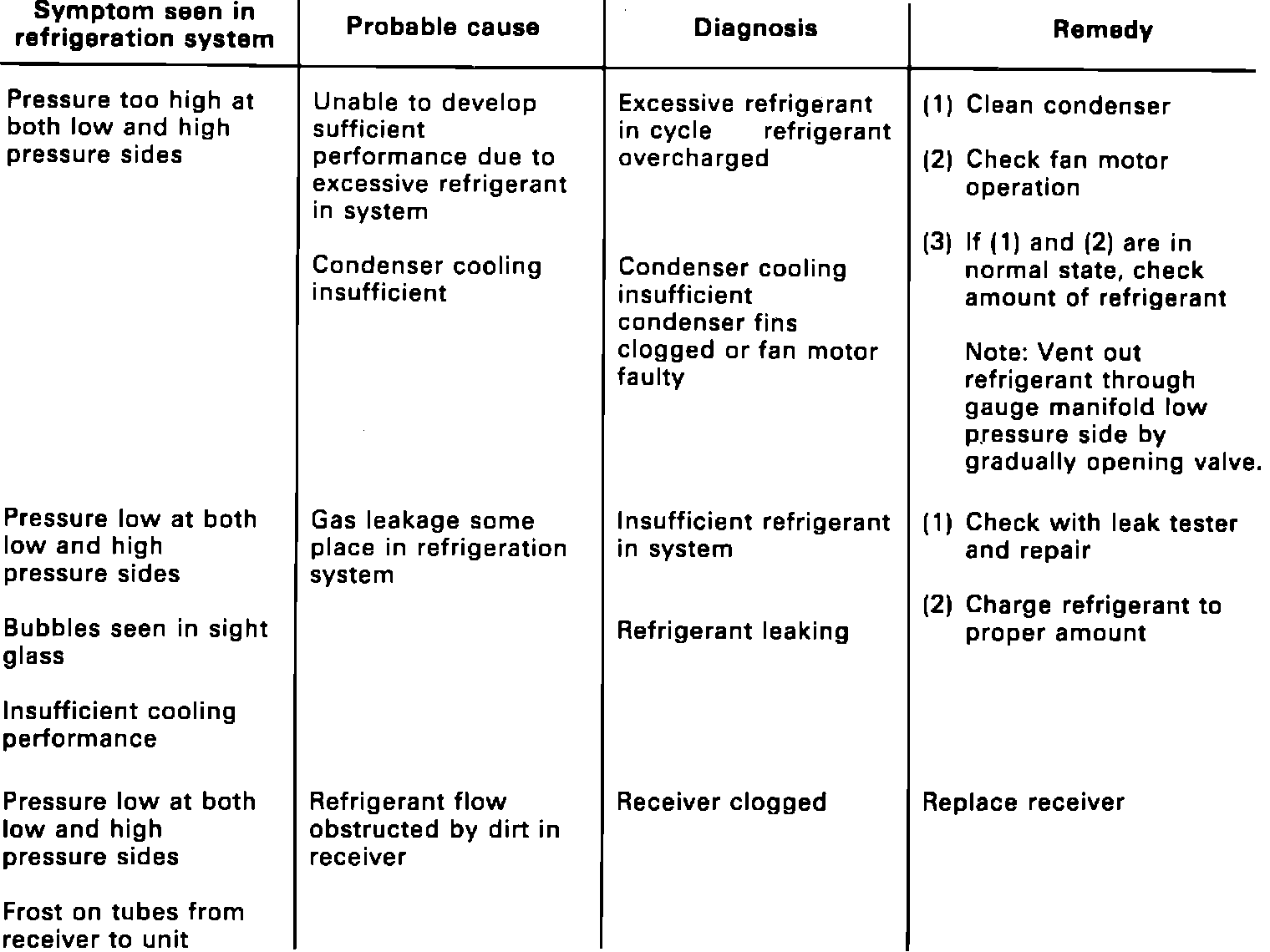

Fig. 26b A/C cooling system diagnosis (Part 2 of 3).:
