Insufficient Air Flow or Warm Air - TXV System
Insufficient Air Flow or Warm Air - TXV System

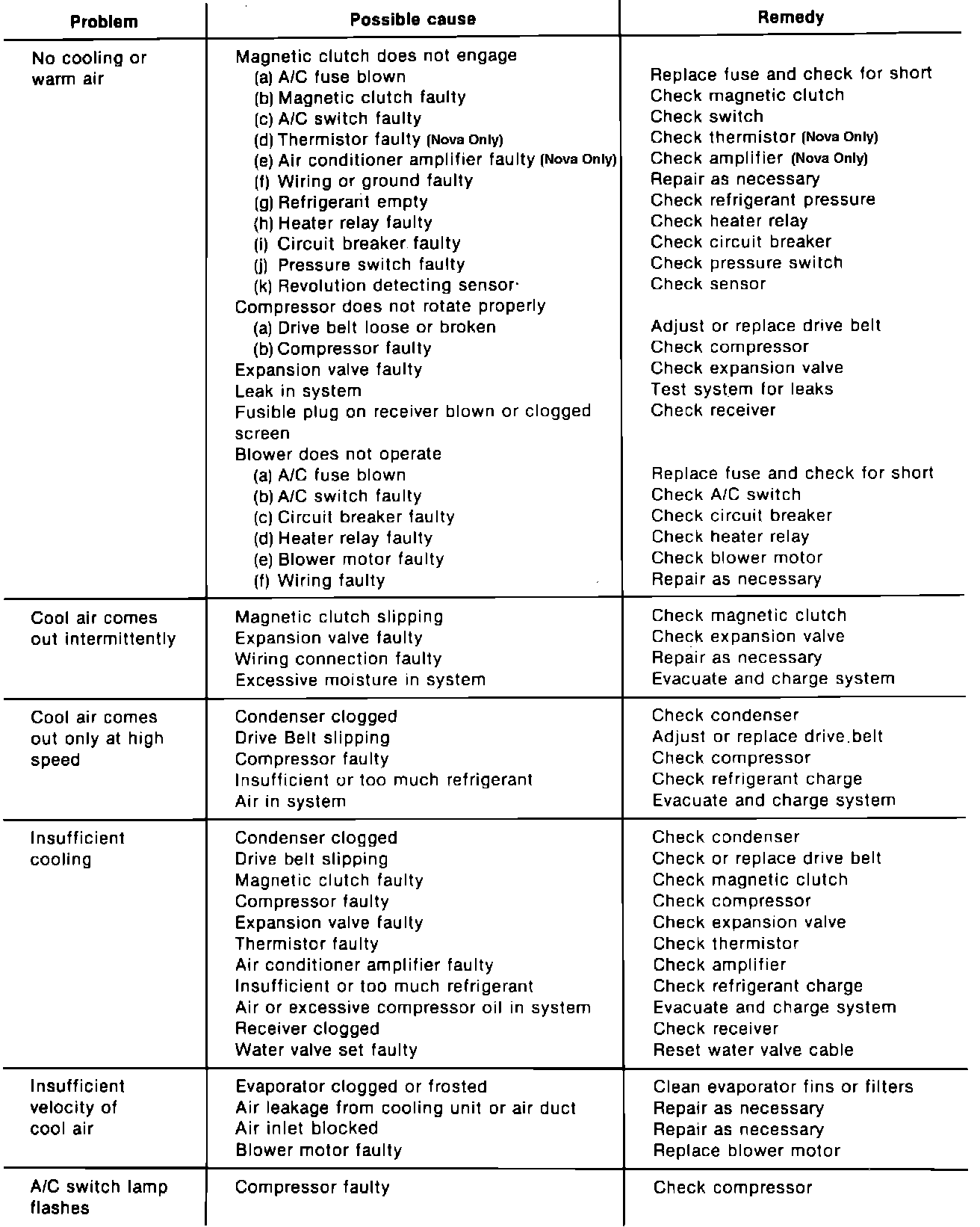

Fig. 26a A/C cooling system diagnosis (Part 1 of 3).:
