Home >> Chevrolet >> 1985 >> Sprint L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems

Emission Control Systems

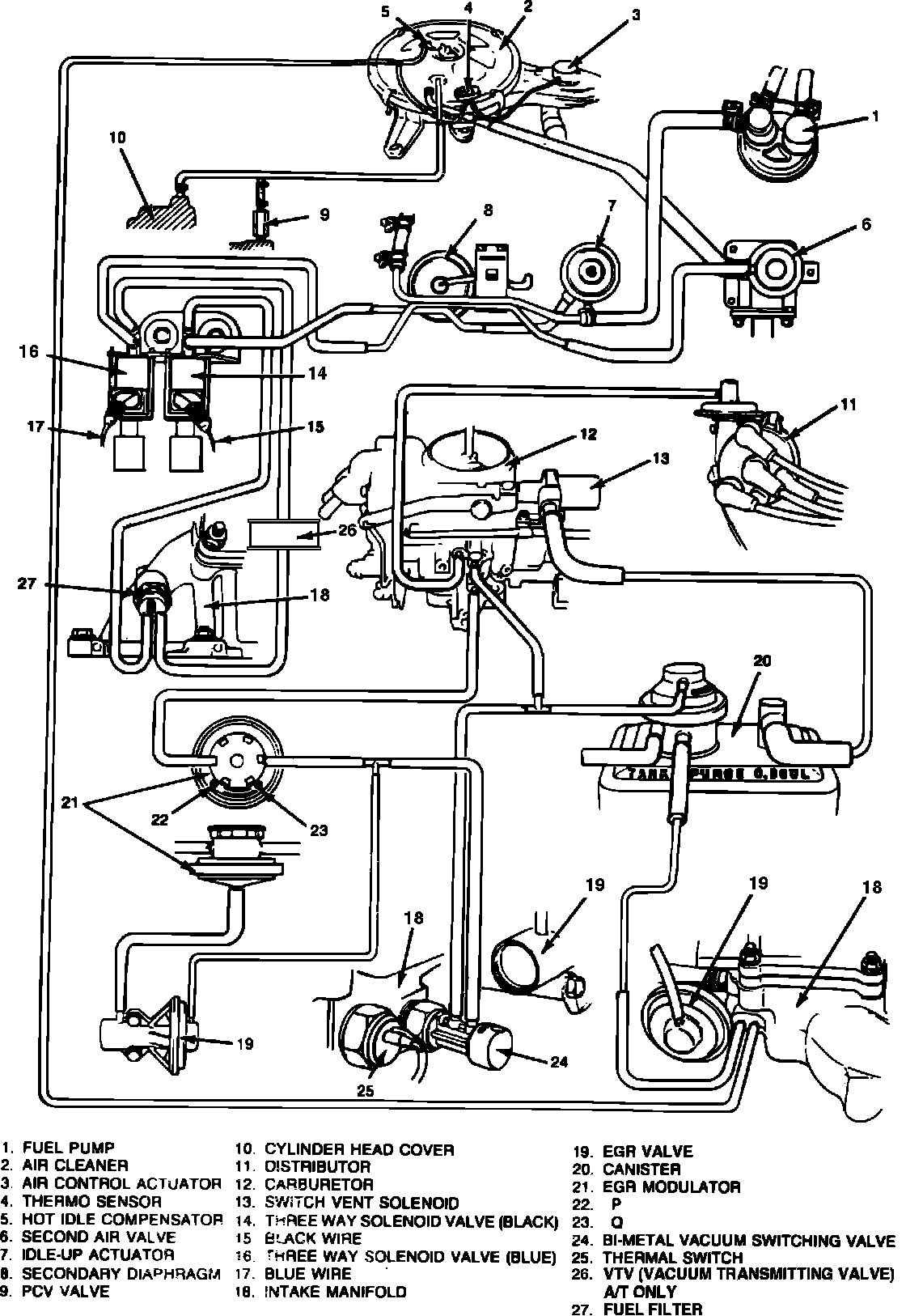

Fig. 1 Vacuum hose routing. 1985 - 86 3-61/1.0L, 2 Bbl.:

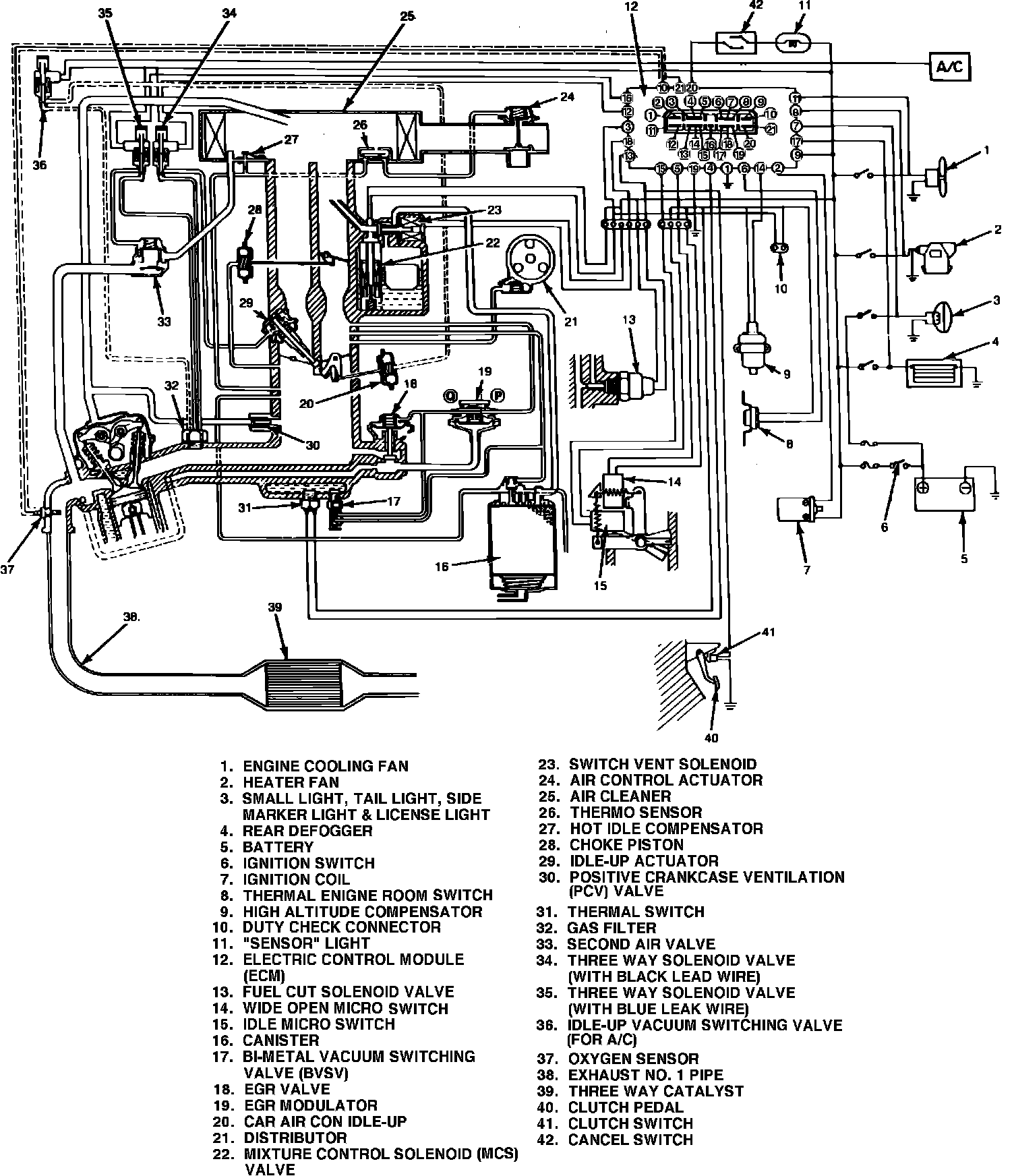

Fig. 2 Emission control system schematic. 1985 - 86 3-61/1.0L, 2 Bbl.:
