Home
>>
Chevrolet
>>
1985
>>
Sprint L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Complete Body Wiring
>>
W/Manual Transmission
W/Manual Transmission

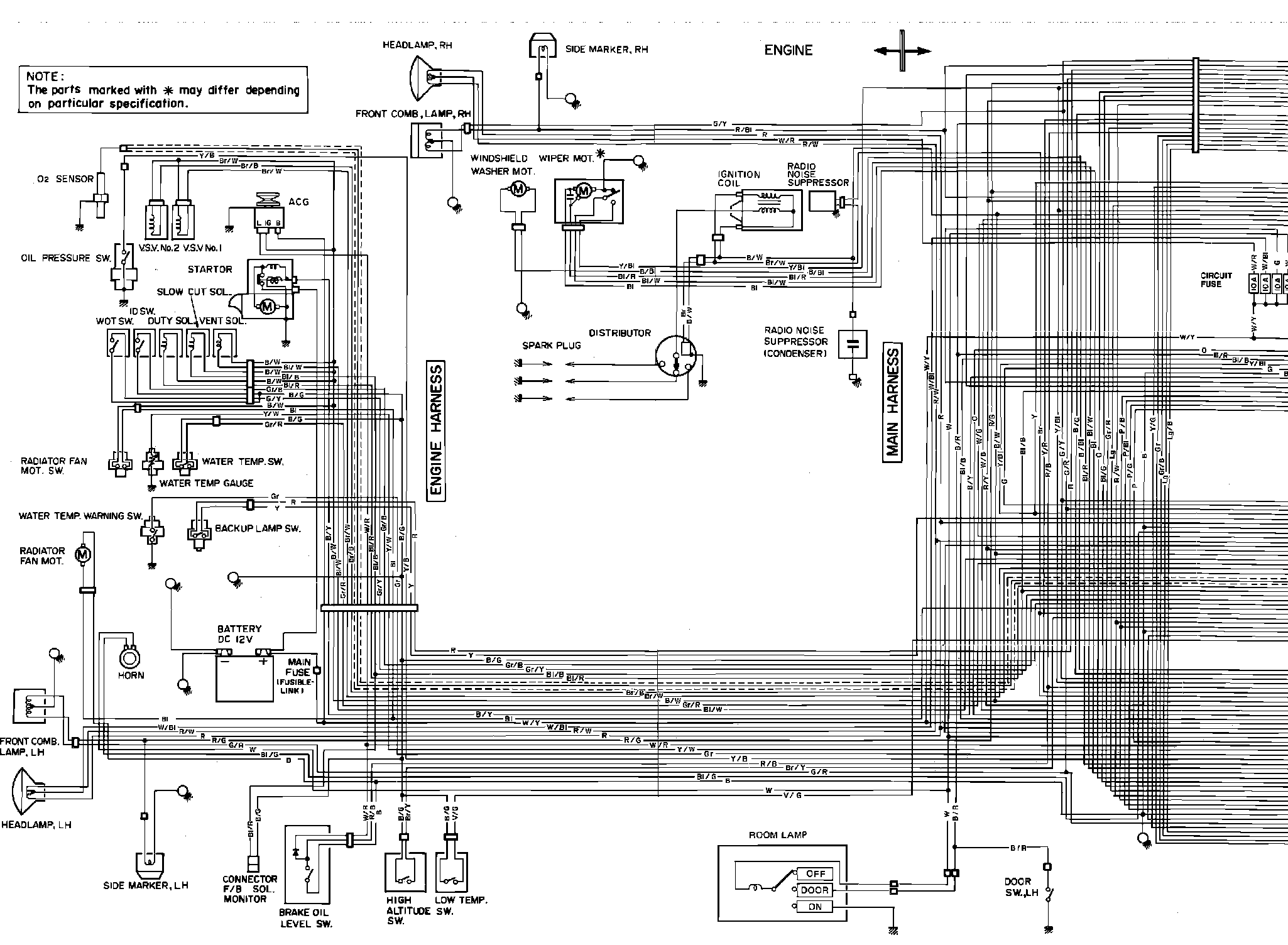

hO�q@��qFig. 004 Complete Body & Chassis Wiring Circuit. W/Manual Transaxle:
