Figure 4 4-98 (1.6L), With M/T & A/C, (Vin C)

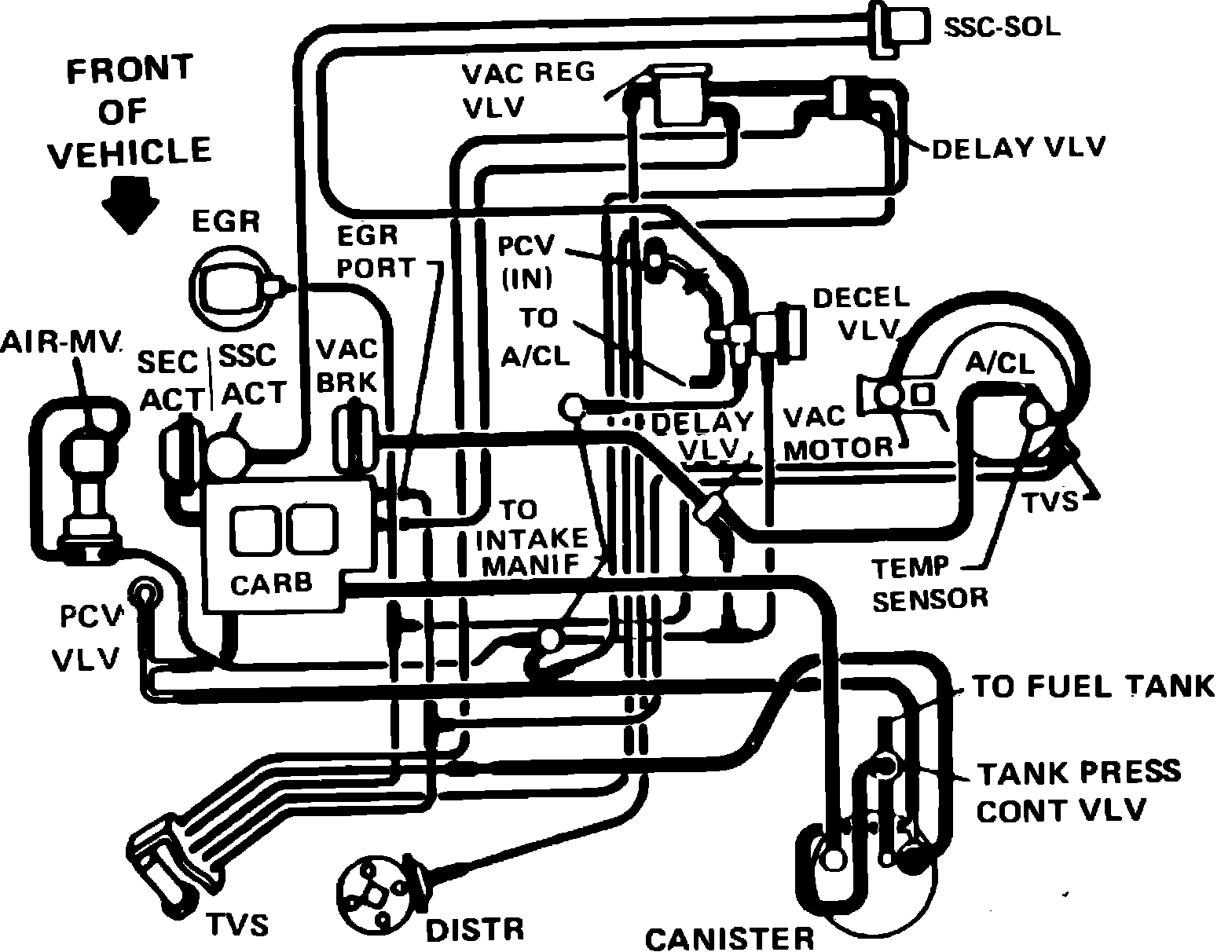

Fig. 4 Vacuum Hose Routing. 1985 4-98 (1.6L), With M/T & A/C, (VIN C):
