Figure 2 4-98 (1.6L) 2 Bbl., A/T, M/S, Less A/C, Fed. (Vin C)

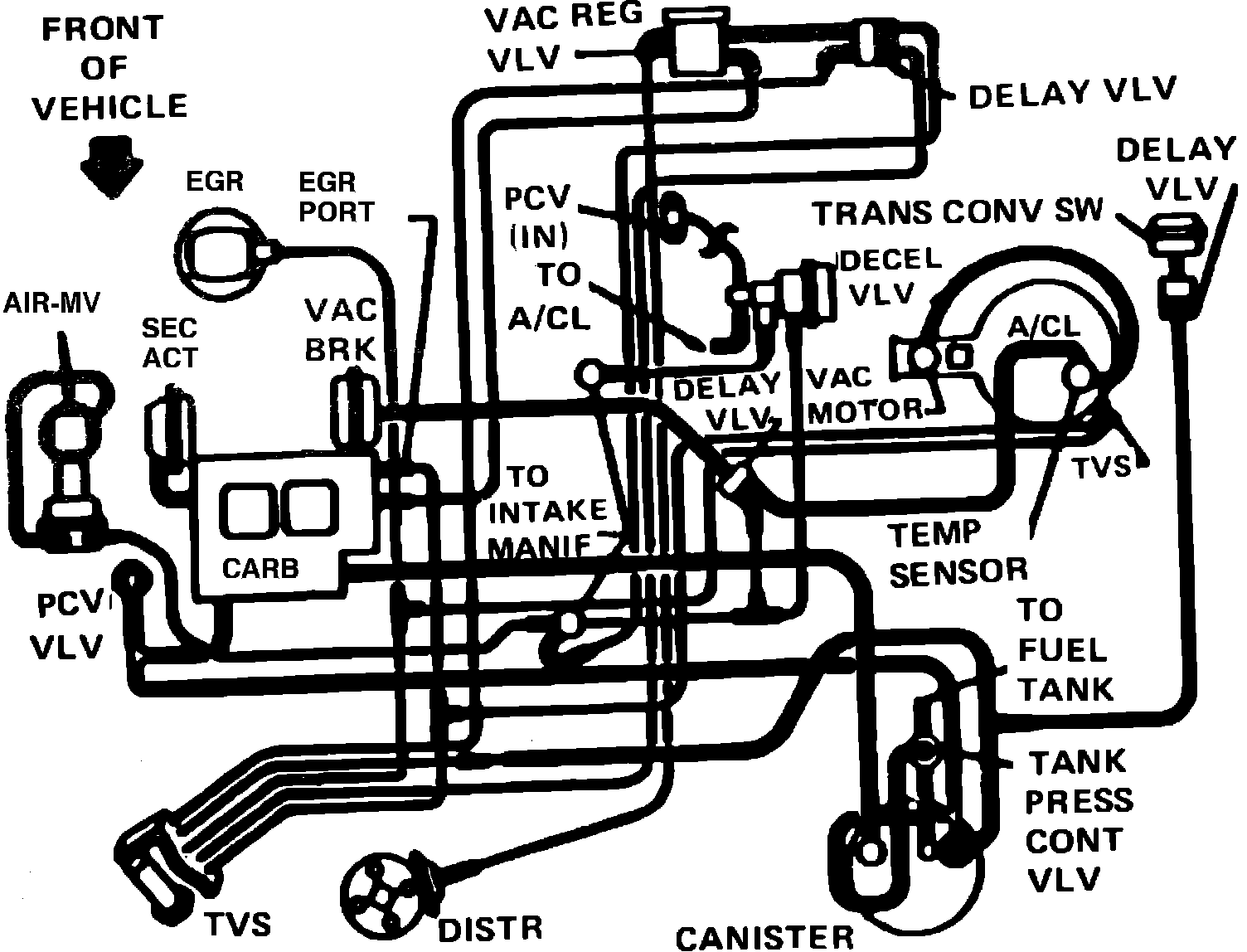

Fig. 2 Vacuum Hose Routing. 1985 4-98 (1.6L) 2 Bbl., A/T, M/S, less A/C, Fed. (VIN C):
