Figure 1 4-98 (1.6L) With A/T & P/S, Fed. (Vin C)

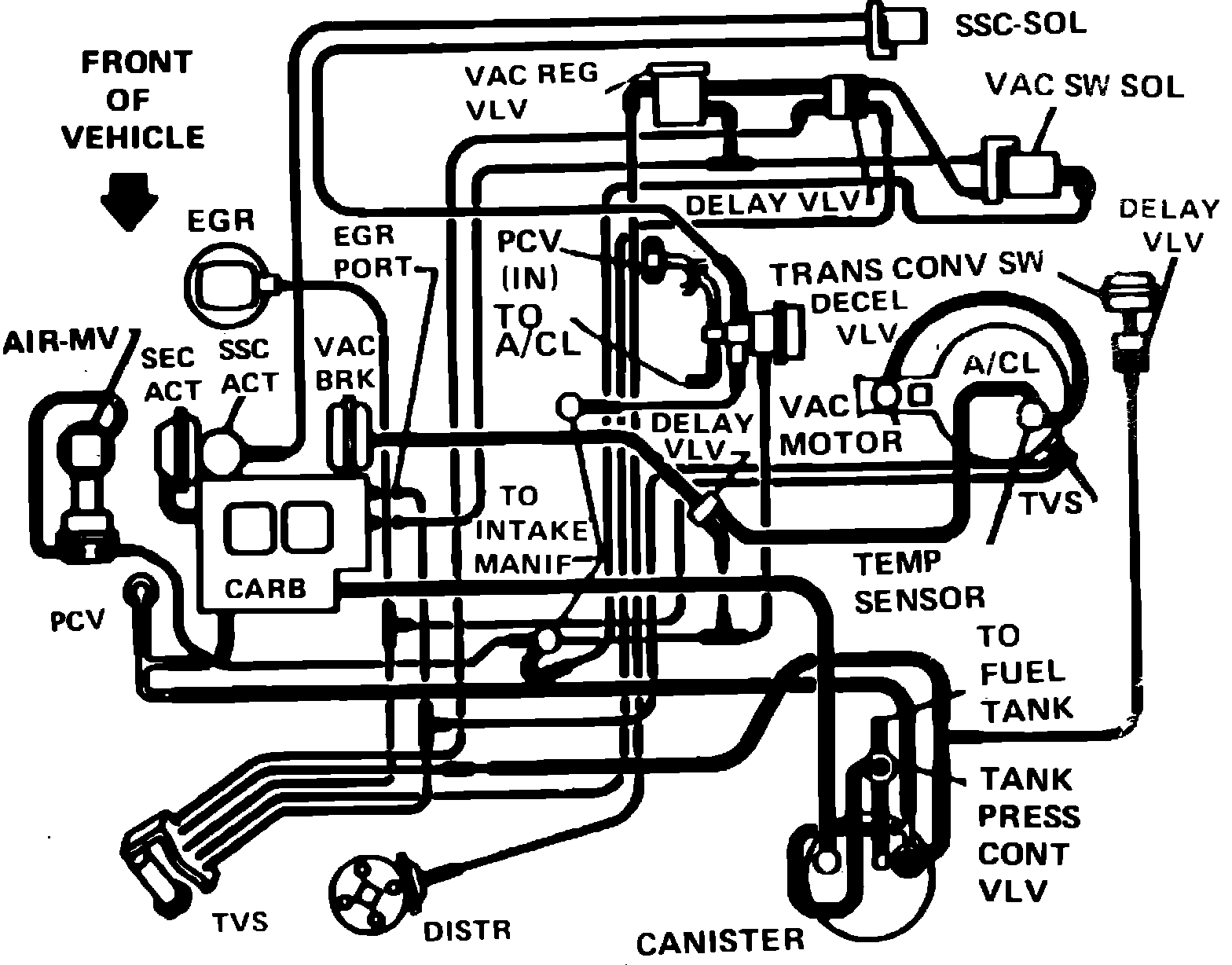

Fig. 1 Vacuum Hose Routing. 1985 4-98 (1.6L) With A/T & P/S, Fed. (VIN C):
