Planetary Carrier

1. Inspect planetary carrier, see image, and output shaft for distortion or other damage.

2. Check the planetary pinions for wear or damage, such as chipped teeth.

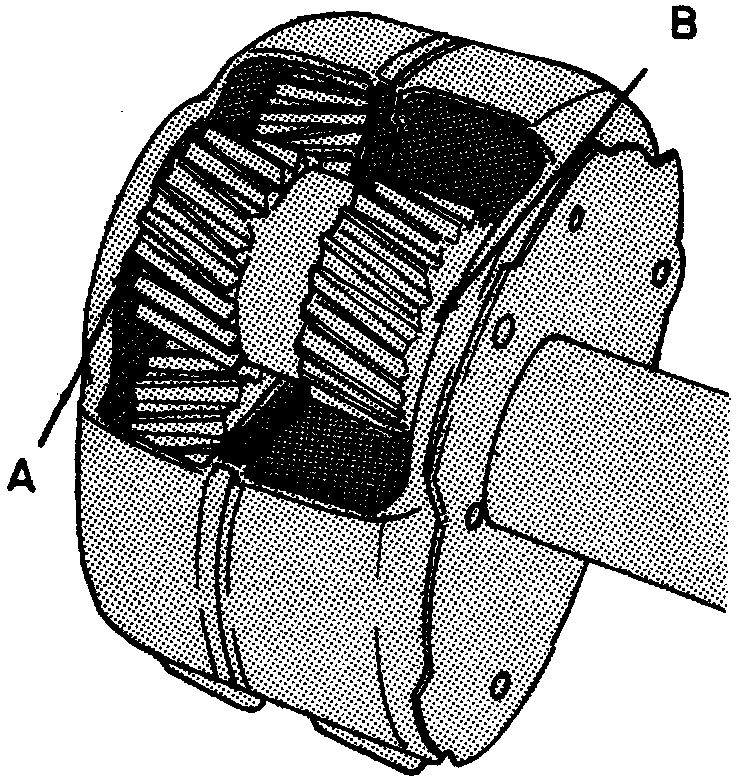

3. Check planetary pinion end clearance of all pinions with feeler gauge at points "A" and "B," see image. Clearance should be between .005 and .035 inch.

4. Replace entire assembly if excessively worn or damaged.
