Governor Hub

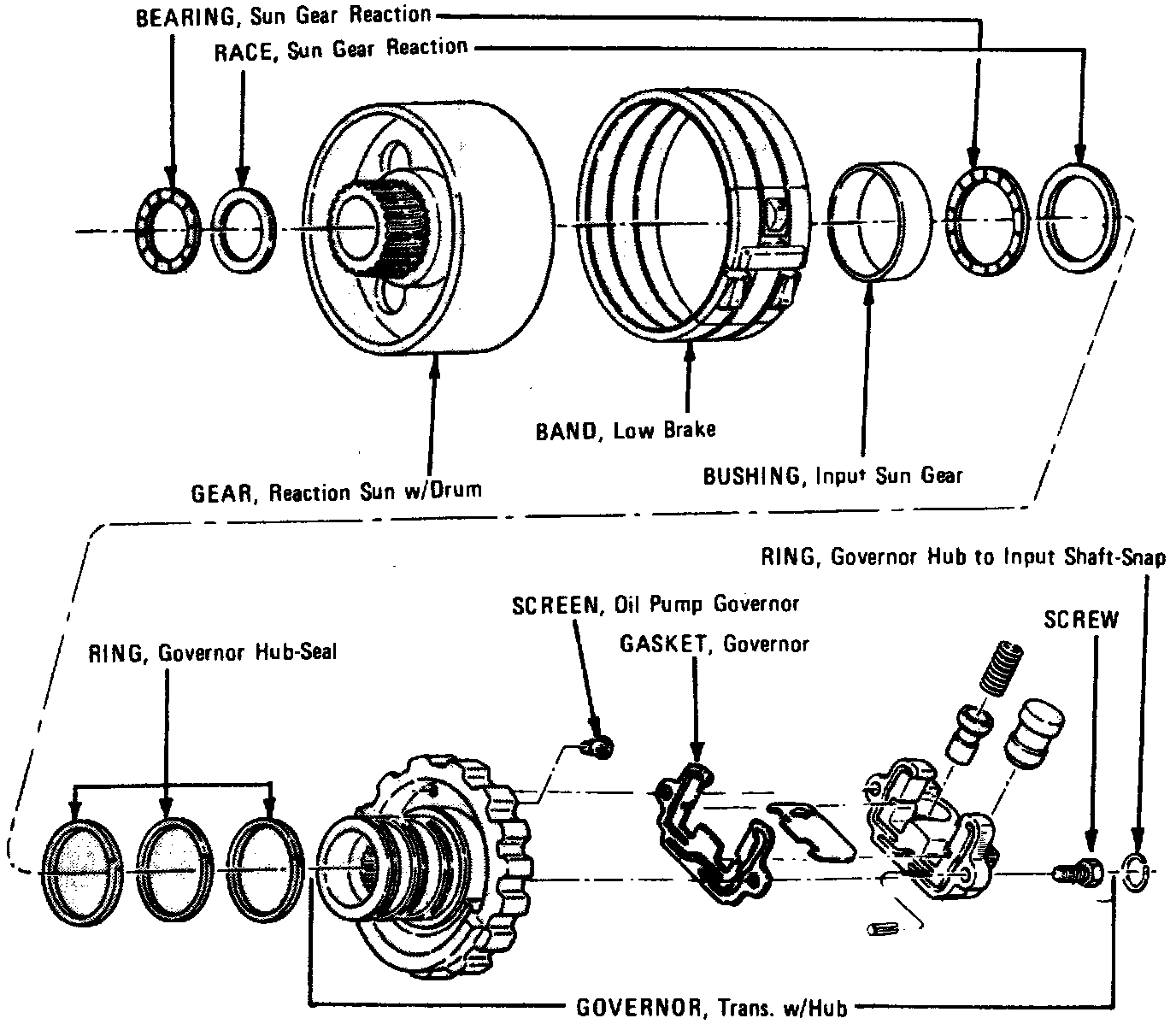

1. Check governor hub seal rings, see image.

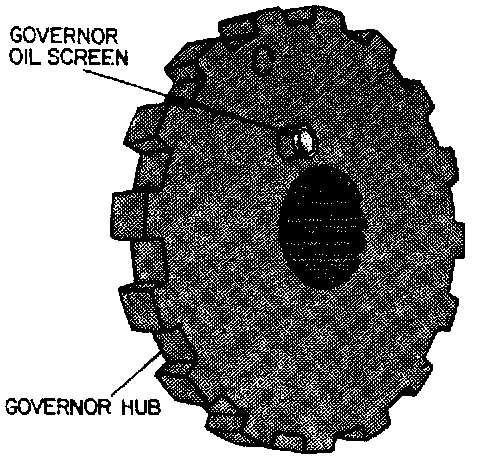

2. Remove governor hub oil screen. Inspect and replace if necessary, see image.

3. Install oil screen flush to hub.

4. Inspect governor hub splines for cracks or chipped teeth. Replace if necessary.
