Rear Suspension

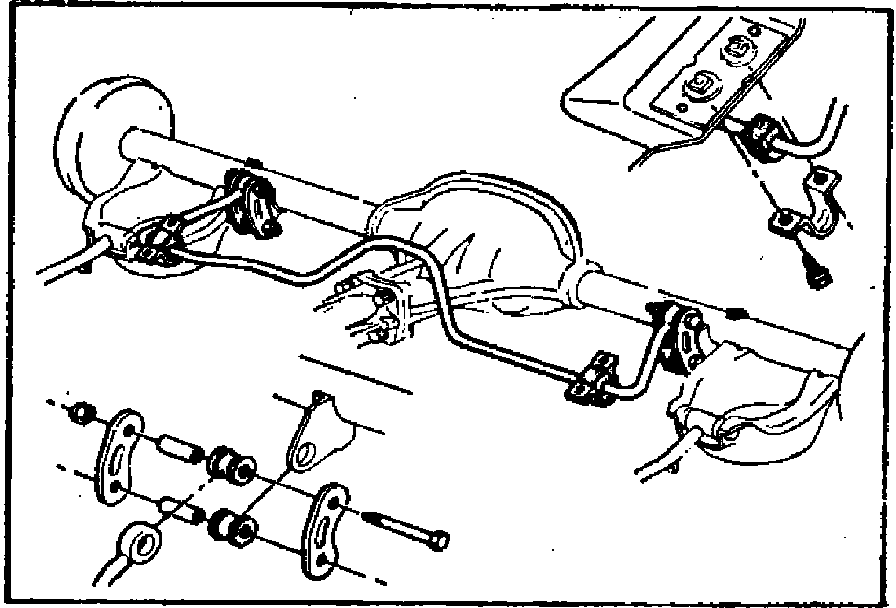

Fig. 2 Stabilizer bar installation:

Fig. 3 Track rod and lower control arm:

1. Raise vehicle and support rear axle.
2. Disconnect stabilizer bar, if equipped, Fig. 2.
3. Disconnect the front and rear control arm attaching bolts and remove control arm from vehicle, Fig. 3. Replace one control arm at a time to prevent axle from rolling or slipping sideways.
4. Reverse procedure to install.
