Emission Test: 1984-86 VIN D (1.8L Diesel)
Emission Test: 1984-86 VIN D (1.8L Diesel)

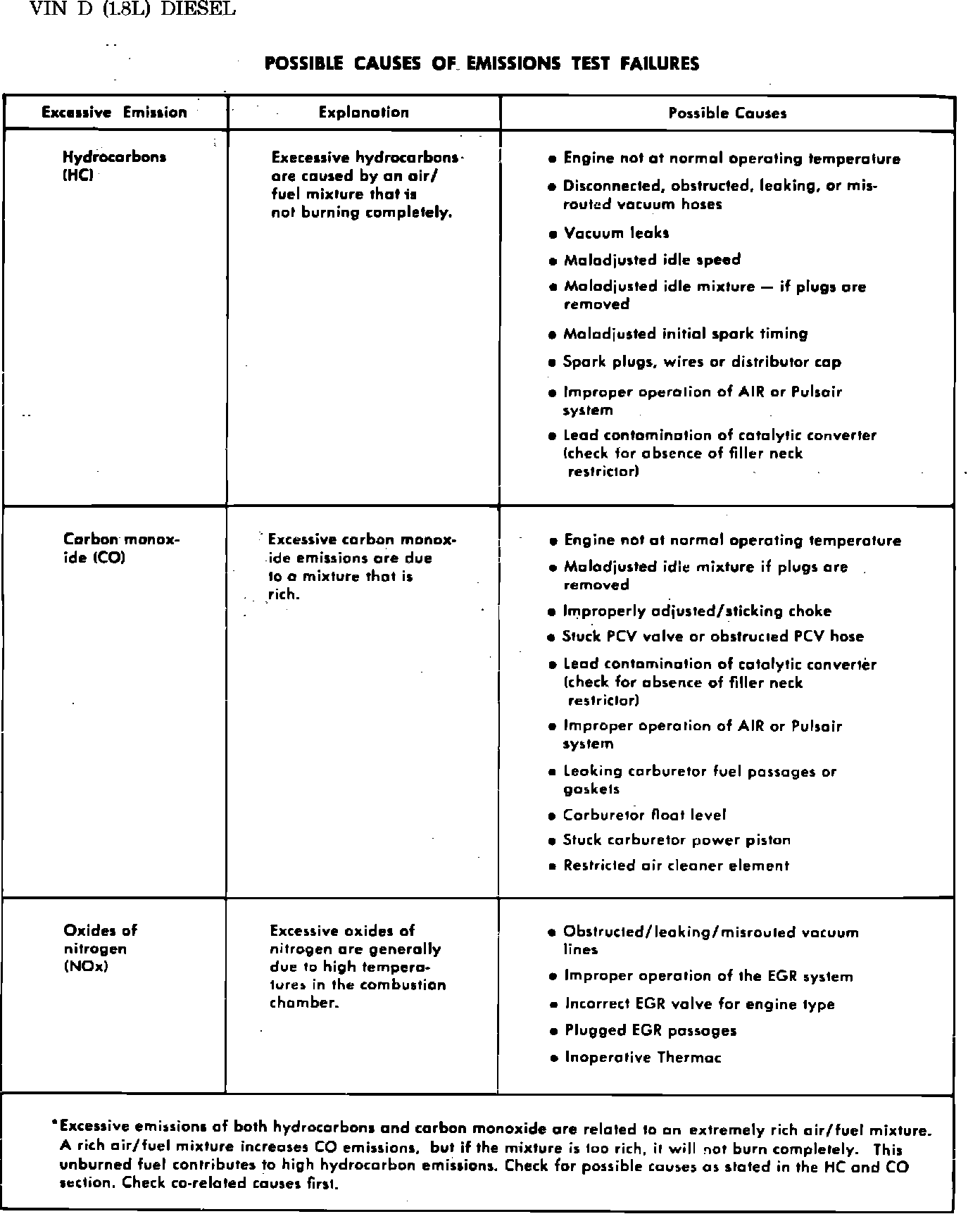

Fig. 021 Emmision Test (Add, p. 13-21):
