Home >> Chevrolet >> 1985 >> Chevette L4-111 1.8L DSL >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> Testing and Inspection >> EGR Controller: 1984-86 VIN D (1.8L Diesel)

EGR Controller: 1984-86 VIN D (1.8L Diesel)

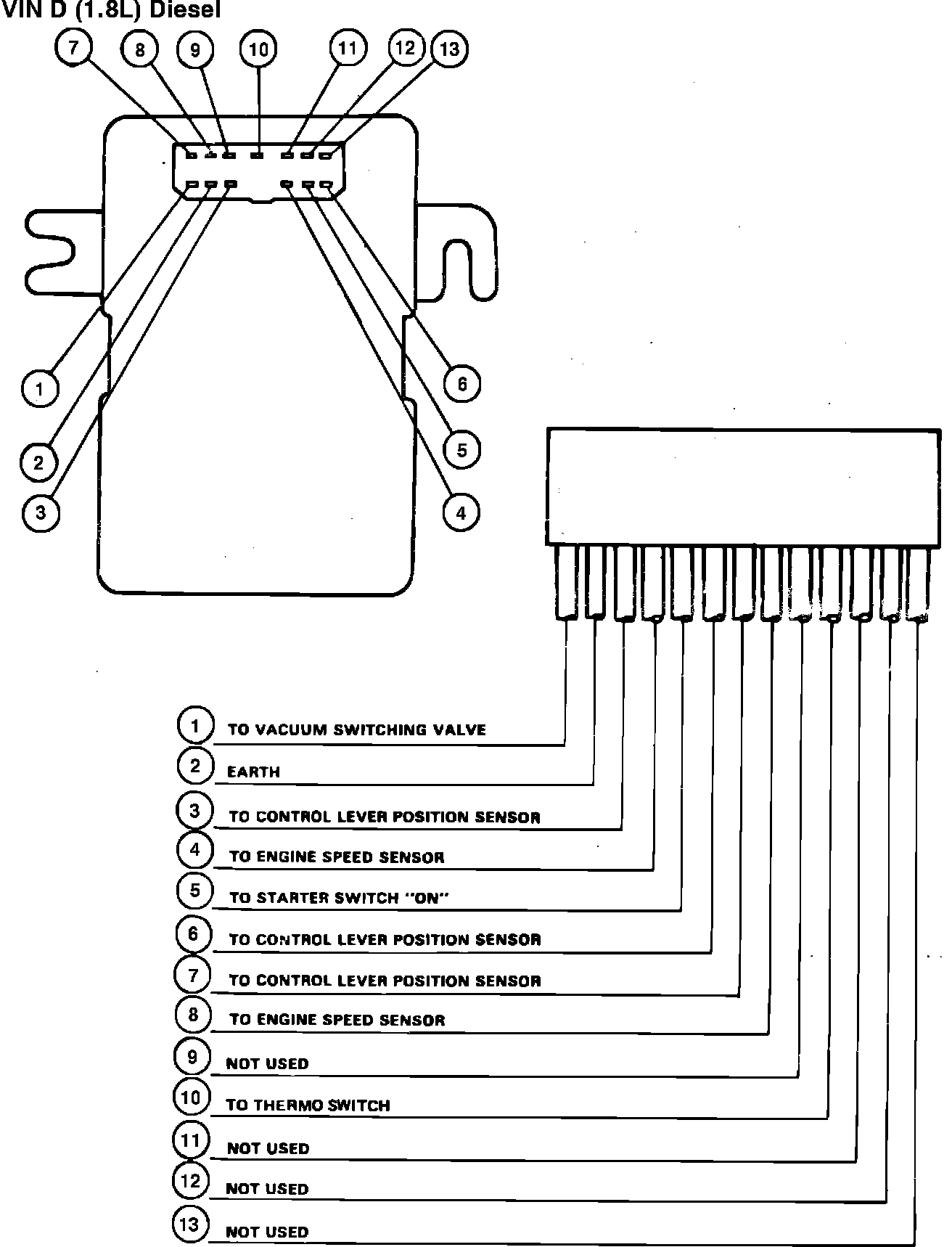

Fig. 019 EGR Controller (Add, p. 13-21):
