Home >> Chevrolet >> 1985 >> Chevette L4-111 1.8L DSL >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Stepped Speed Control >> With Manual Transmission

With Manual Transmission

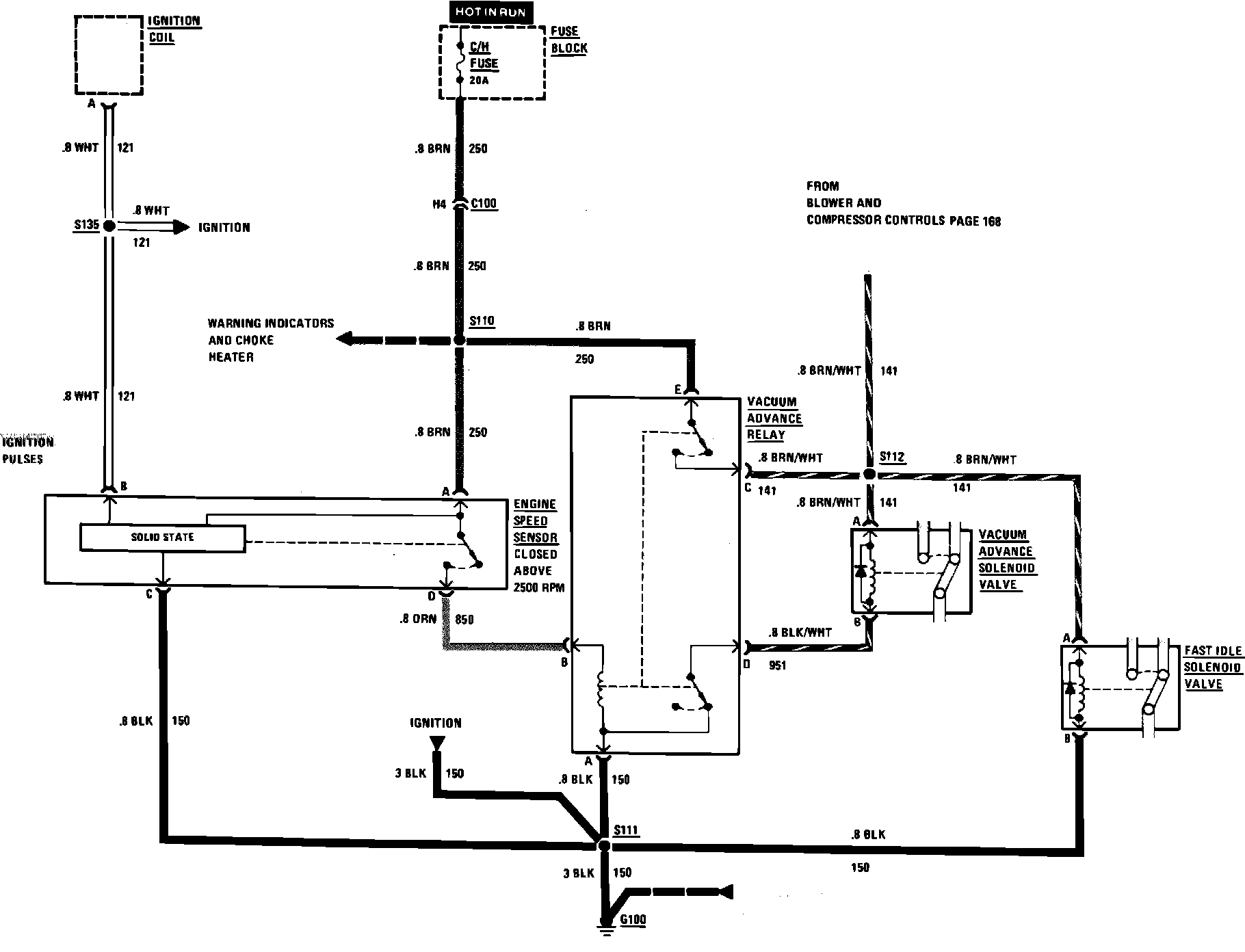

Fig. 33 Stepped Speed Control, Manual Transmission With Air Conditioning. 1985 Chevette & T1000:
