Chevrolet
>>
1985
>>
Chevette L4-111 1.8L DSL
>>
Repair and Diagnosis
>>
Locations
>>
Fuse and Fusible Link Locations
Fuse and Fusible Link Locations

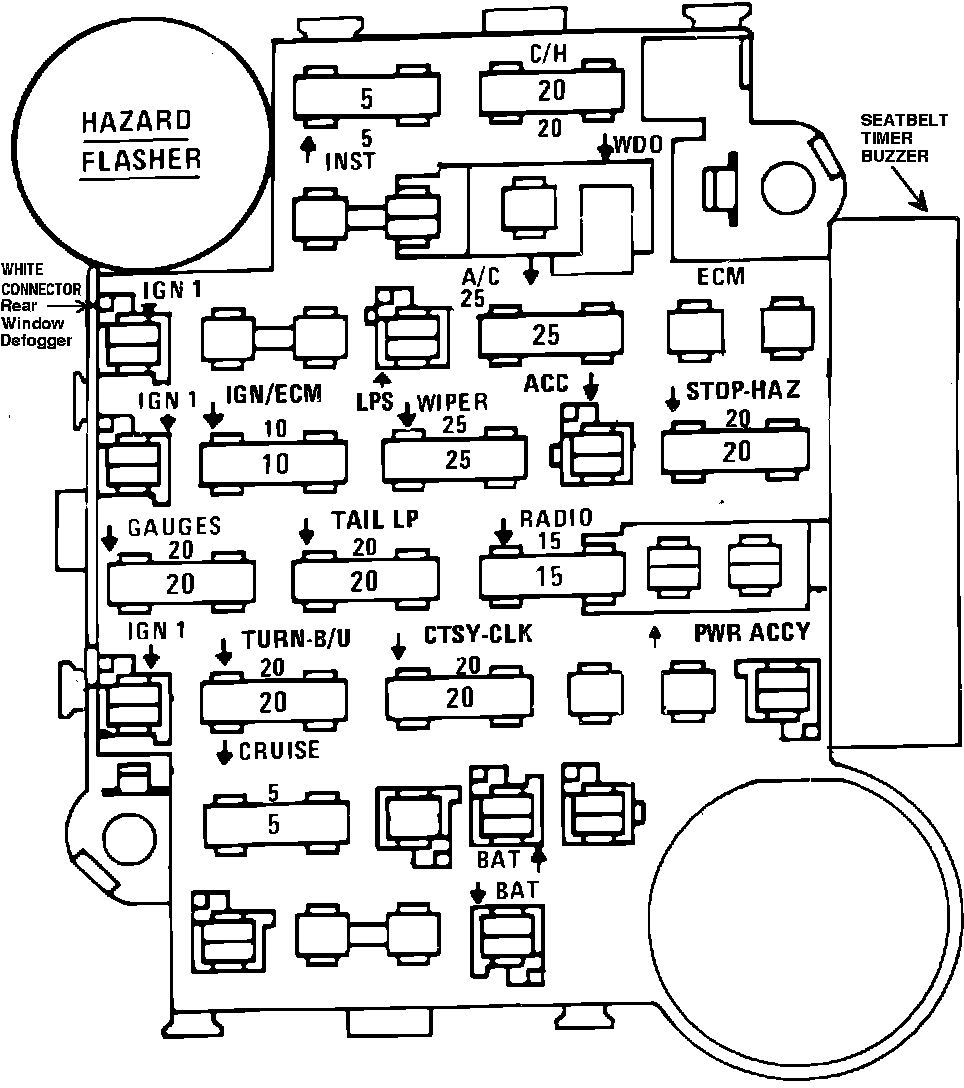

Fig. 1 Fuse Panel. 1985 Chevette & T1000:
