Glow Plugs/Fuel Control

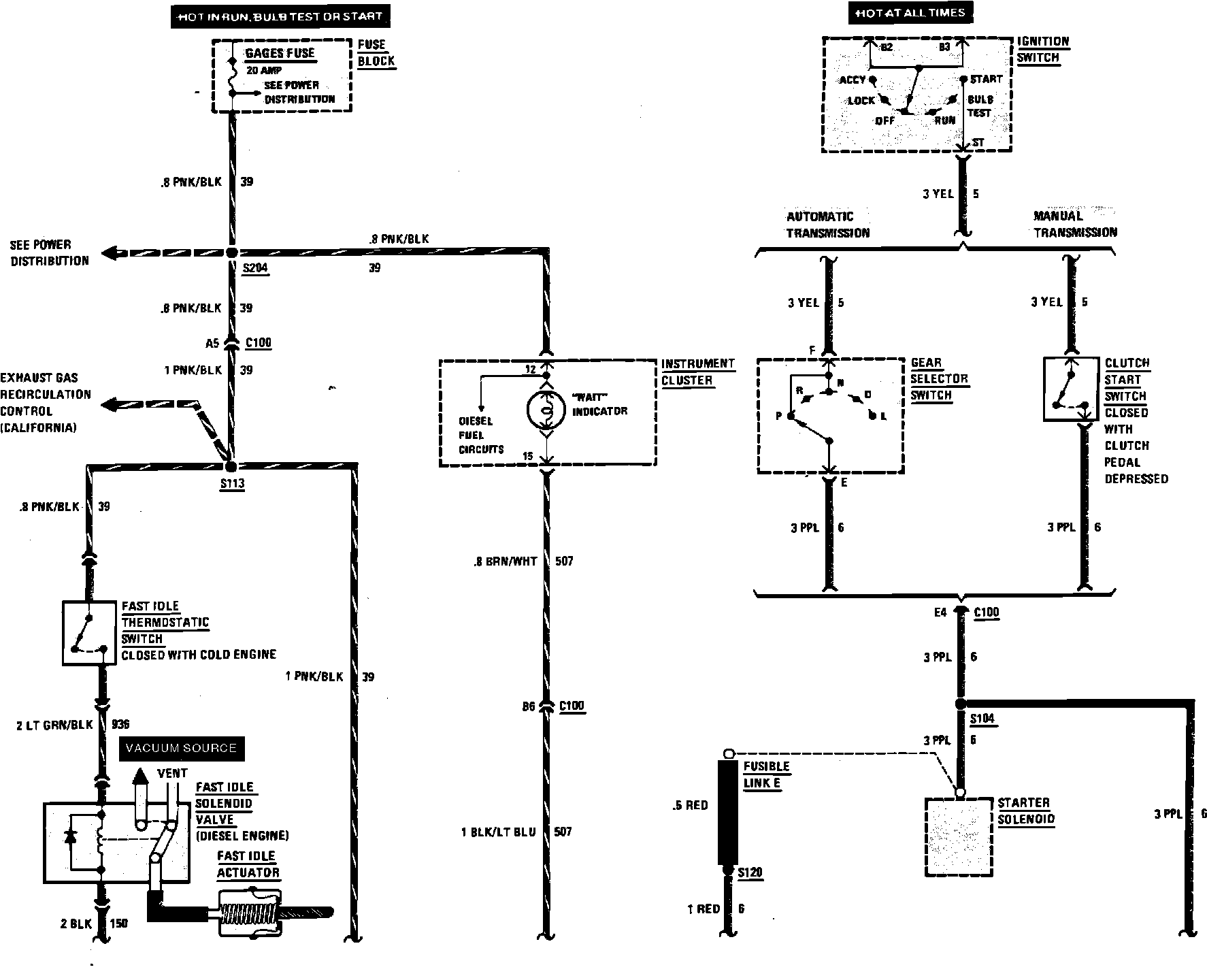

Glow Plug Control System Wiring Circuit:

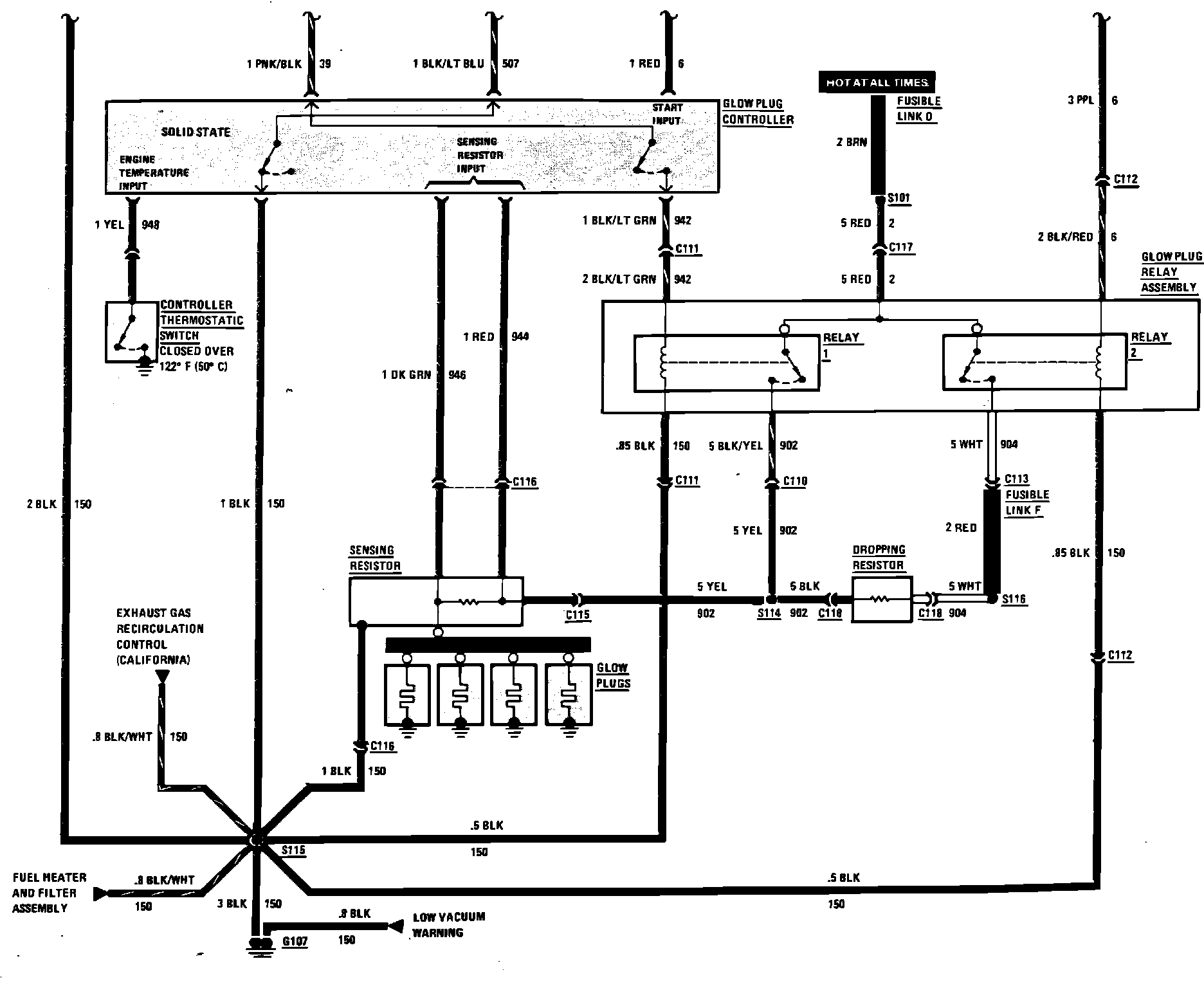

Glow Plug Control System Wiring Circuit:
