Instrument Panel Printed Circuit (Typical)

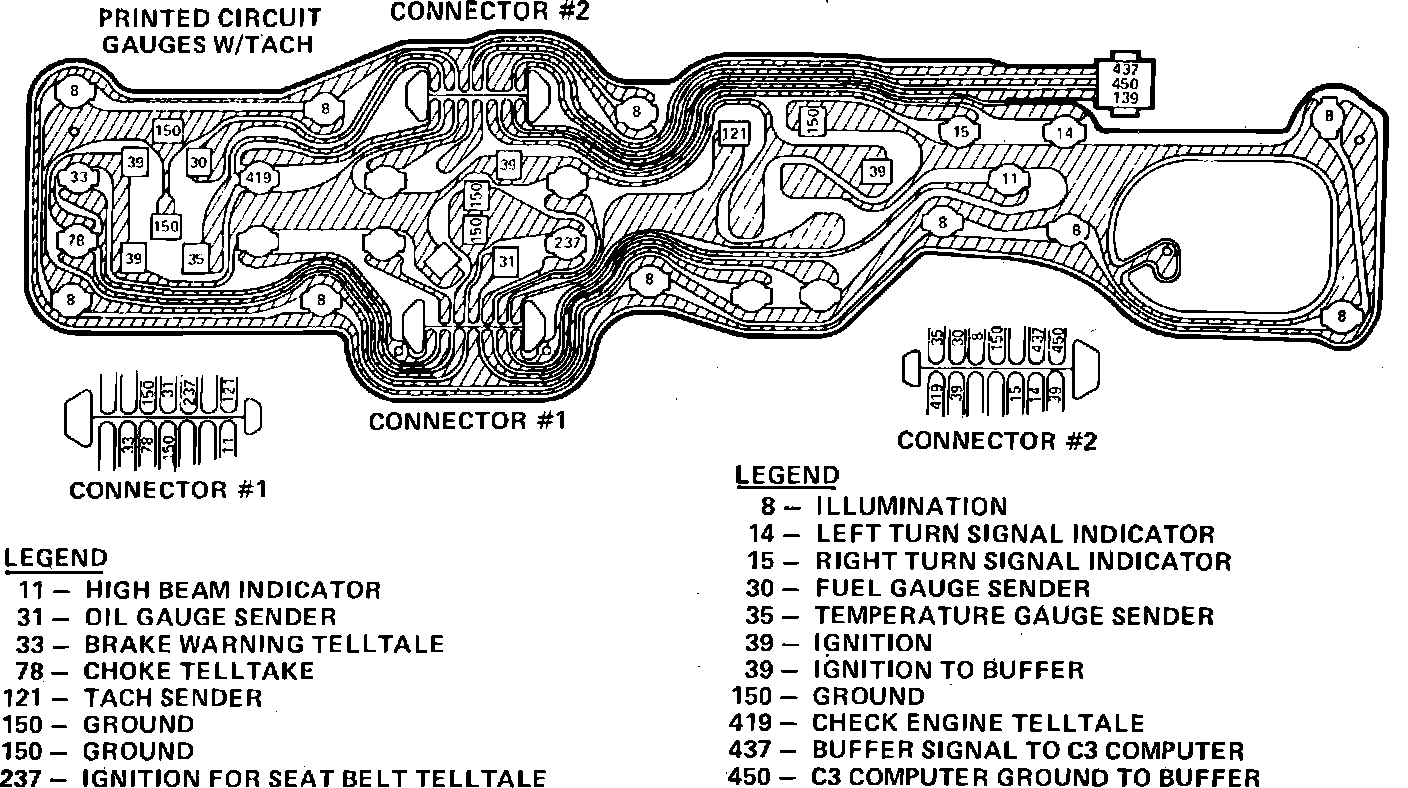

Fig. 2 Instrument Panel Printed Circuit. 1985 Chevette & T1000 Typical:
