Brake Warning Indicator
Brake Warning Indicator

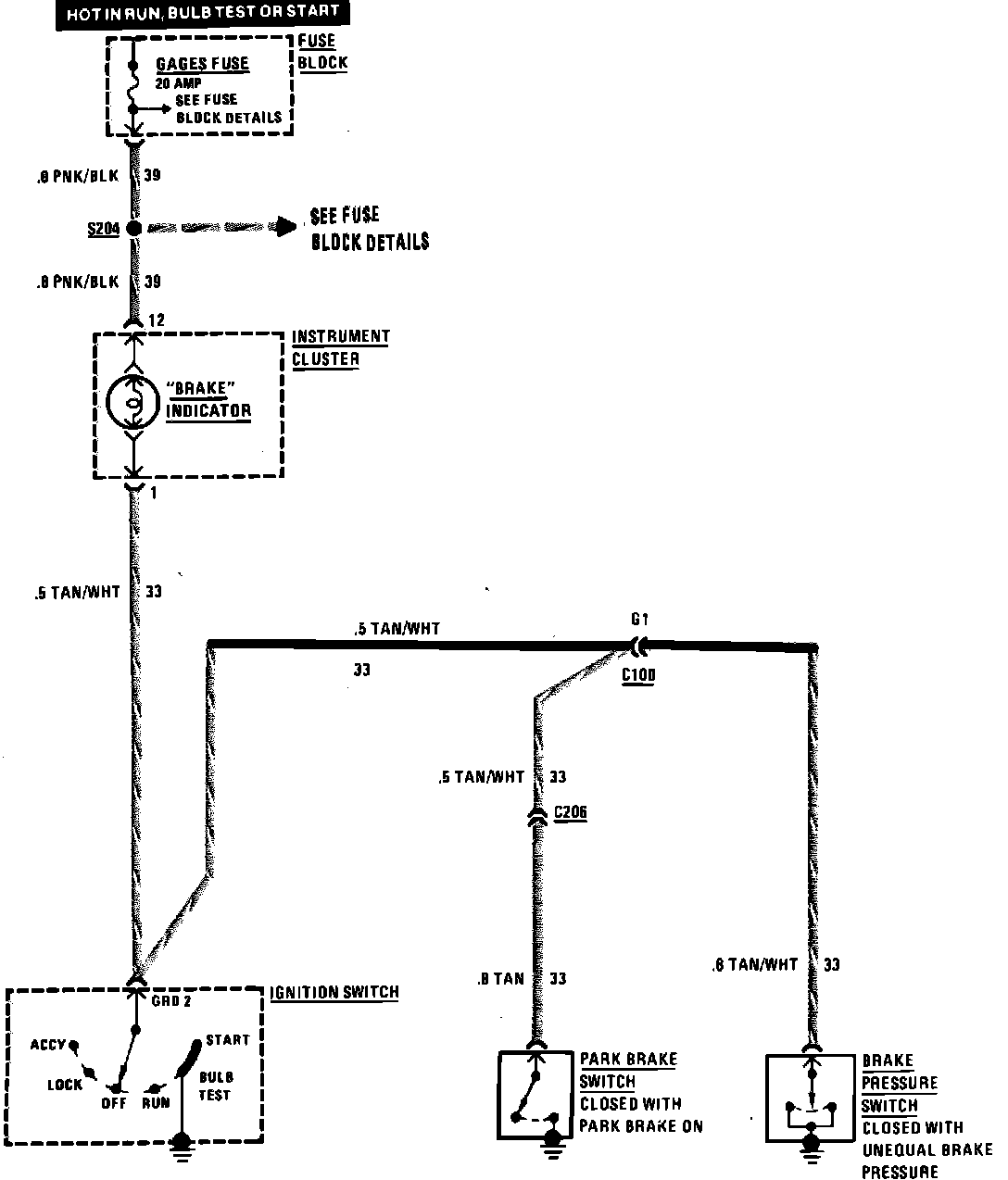

Fig. 6 Brake Warning System Wiring Circuit. 1985 Chevette & T1000:
