Oil Pressure Indicator

  1. Indicator light is inoperative with ignition switch "ON" and engine not running. Check for burned out bulb, open light circuit or defective oil pressure switch.
  2. Indicator light is "ON" and engine is running above idle speed. Indicates low oil pressure, defective oil pressure switch or ground condition between light and switch.

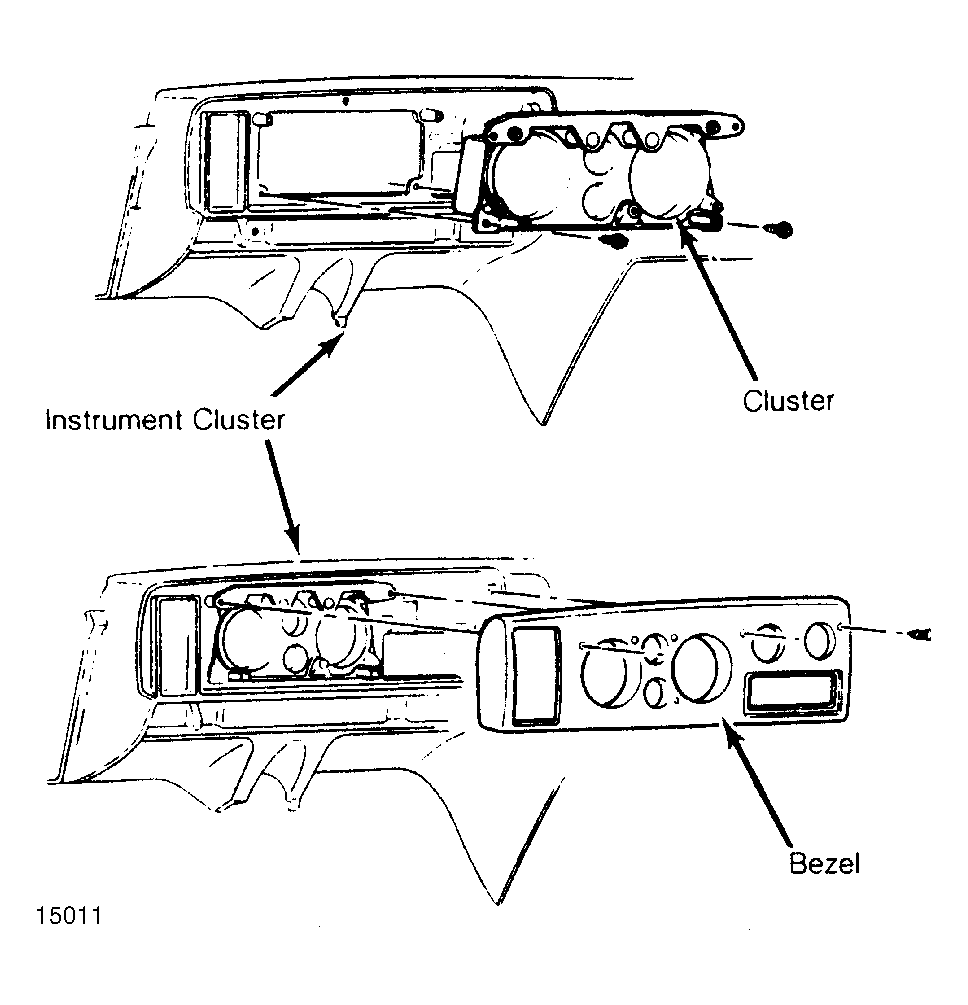

Fig 1: General Motors "G" Models Instrument Cluster
G15011
