Chevrolet
>>
1982
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>

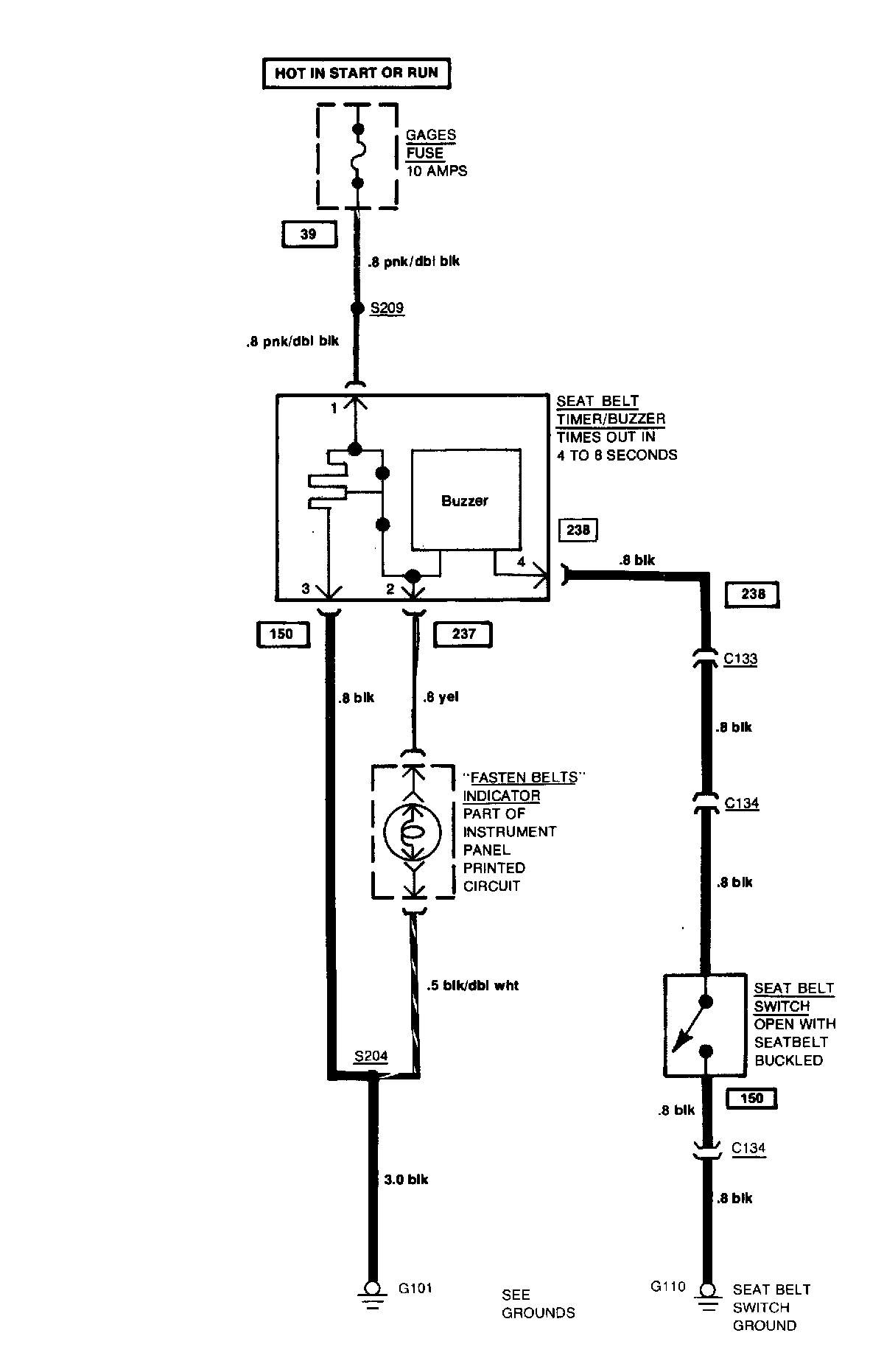

Seat Belt Warning Buzzer Wiring Circuit
Seat Belt Warning Buzzer Wiring Circuit
