Home >> Chevrolet >> 1982 >> Chevette L4-98 1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Ignition Key, Lights-on & Seatbelt Steady Tone Alarm

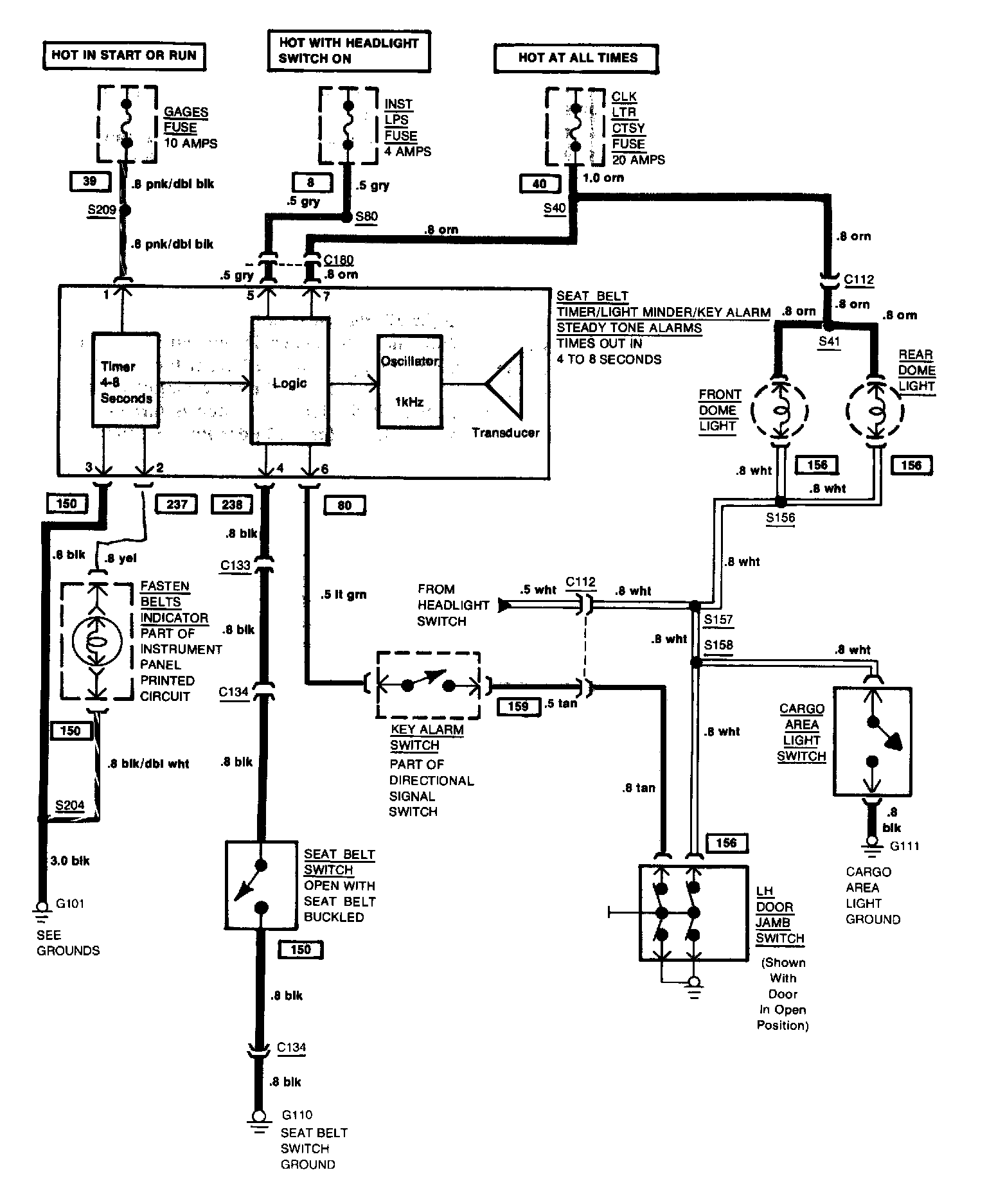

Ignition Key, Lights-on & Seatbelt Steady Tone Alarm
