Removal (Camaro)
- Disconnect battery. Remove screws (2 above ash tray) securing trim cover beneath steering column. Reach under cluster left side and depress headlight switch shaft retainer button, while pulling on switch knob. Remove headlight switch retaining nut, cigar lighter and housing.

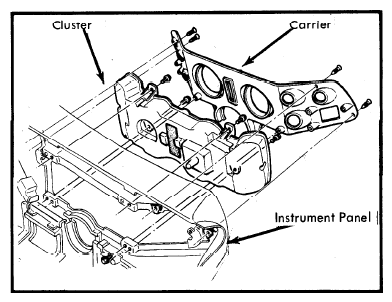

- From rear of panel remove screw on either side of steering column. Remove 4 screws on front of carrier and 1 screw retaining ground wire for wiper switch. Tilt carrier out (for access) and remove connector plugs on wiper and headlight switches.
- Disconnect speedometer cable and wiring. Remove cluster from vehicle. Remove bulbs and gauge mounting nuts, then remove printed circuit and instruments.
Courtesy of GENERAL MOTORS COMPANY
