Wiring Diagrams

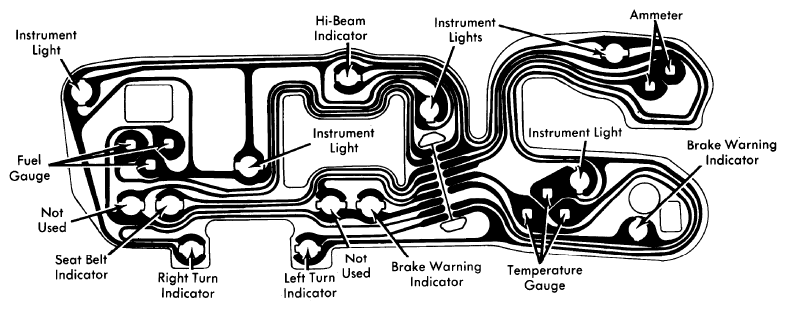

Fig 1: Chevrolet and GMC "C" and "K" (All Models) With Clock and Gauges, No Tachometer
G09308103Courtesy of GENERAL MOTORS COMPANY

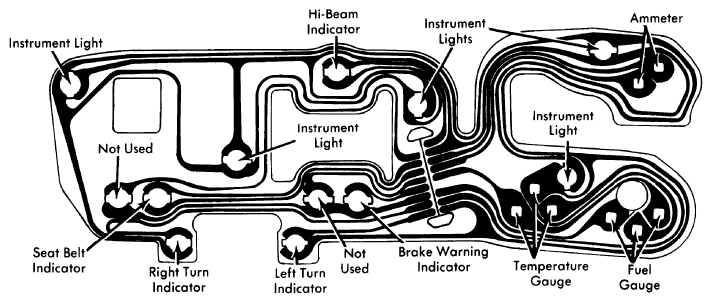

Fig 2: Chevrolet and GMC "C" and "K" (All Models) With Tachometer and Gauges, No Clock
G09308104Courtesy of GENERAL MOTORS COMPANY

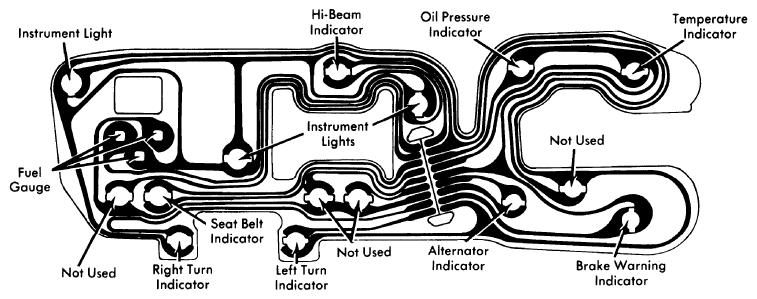

Fig 3: Chevrolet and GMC "C" and "K" (All Models) With Tachometer and Clock, No Gauges
G09308105Courtesy of GENERAL MOTORS COMPANY

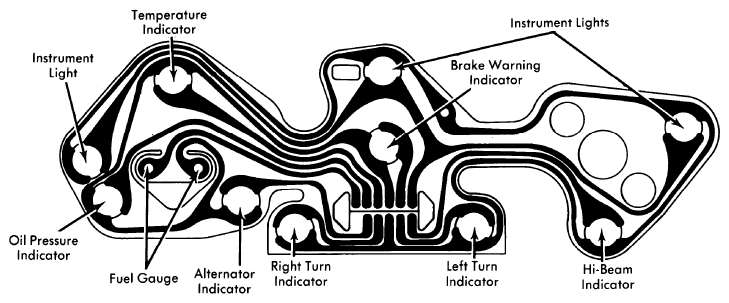

Fig 4: Chevrolet and GMC "G" and "P" (All Models) and MHC Without Gauges
G09308106Courtesy of GENERAL MOTORS COMPANY

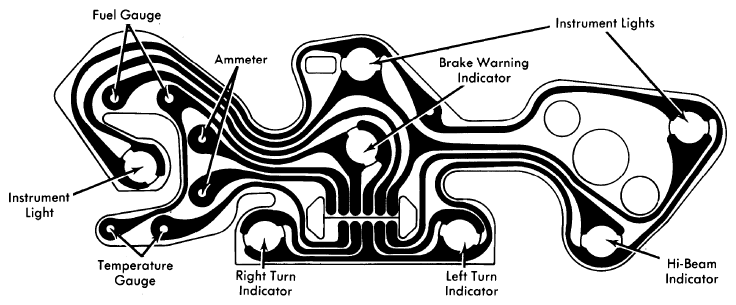

Fig 5: Chevrolet and GMC "G" and "P" (All Models) and MHC With Gauges
G09308107Courtesy of GENERAL MOTORS COMPANY

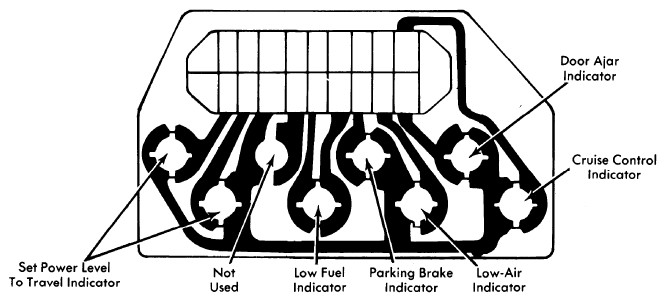

Fig 6: GMC Front Wheel Drive Motor Home Tell-Tale Circuit
G09308108Courtesy of GENERAL MOTORS COMPANY

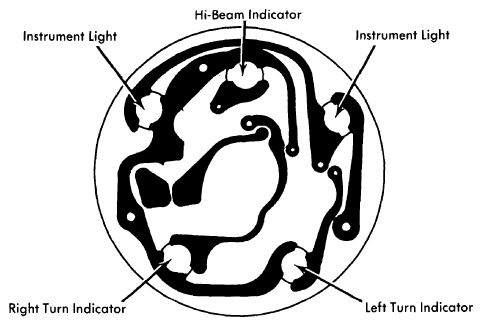

Fig 7: GMC Front Wheel Drive Motor Home Speedometer Circuit
G09308109Courtesy of GENERAL MOTORS COMPANY

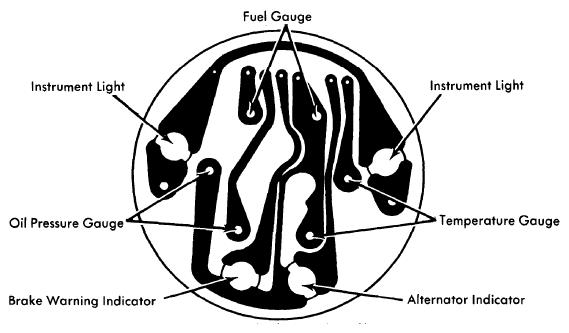

Fig 8: GMC Front Wheel Drive Motor Home Instrument Cluster Circuit
G09308110Courtesy of GENERAL MOTORS COMPANY
