Wiring Diagrams

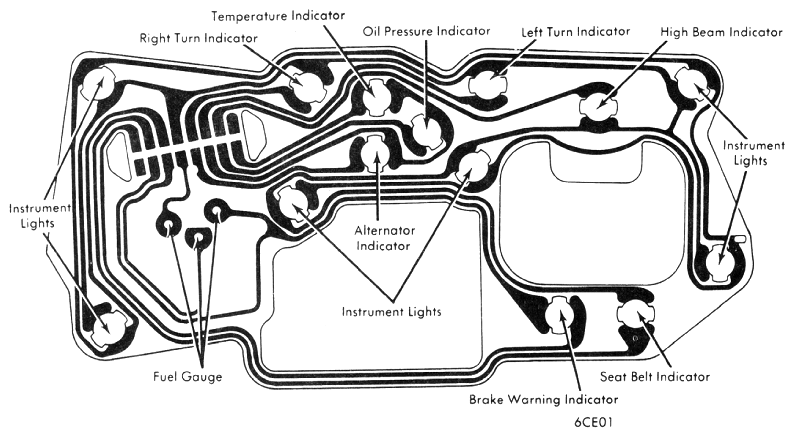

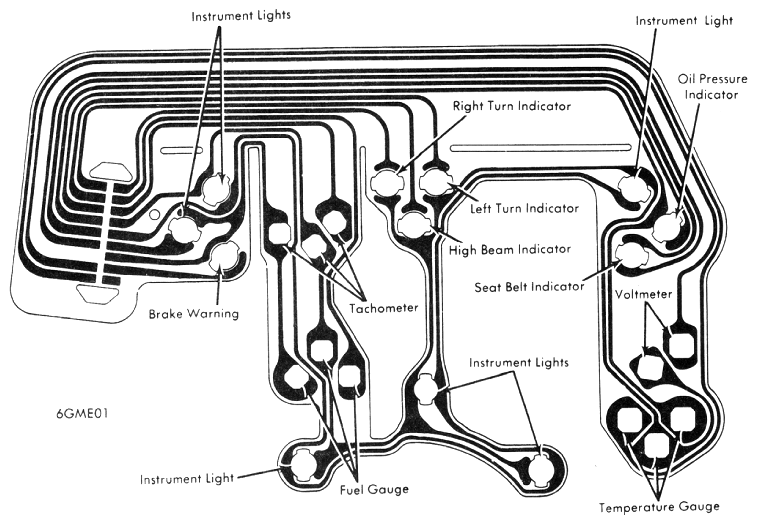

Fig 1: Camaro (With Indicator Lights)

Courtesy of GENERAL MOTORS COMPANY

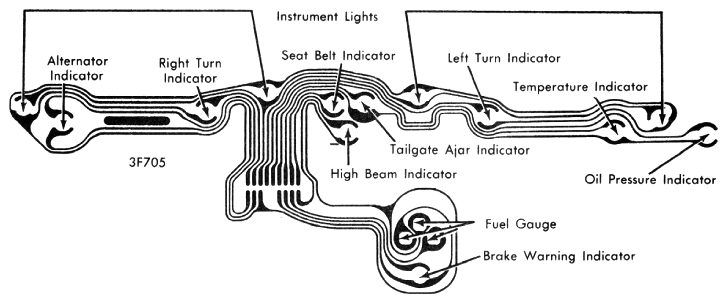

Fig 2: Camaro (With Gauges)

Courtesy of GENERAL MOTORS COMPANY

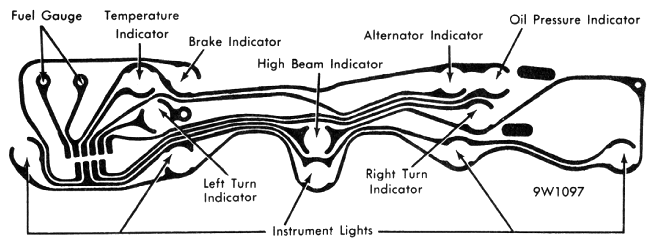

Fig 3: Chevelle (Exc. Ss & Monte Carlo) With Indicator Lights

Courtesy of GENERAL MOTORS COMPANY

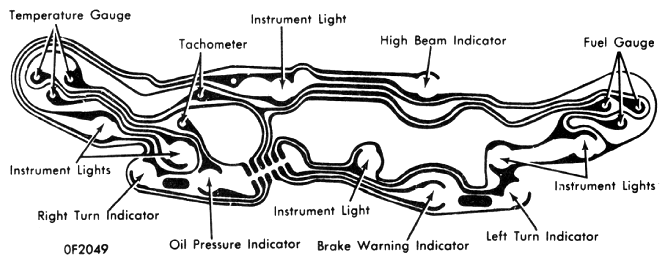

Fig 4: Chevelle S.S. & Monte Carlo (With Indicator Lights)

Courtesy of GENERAL MOTORS COMPANY

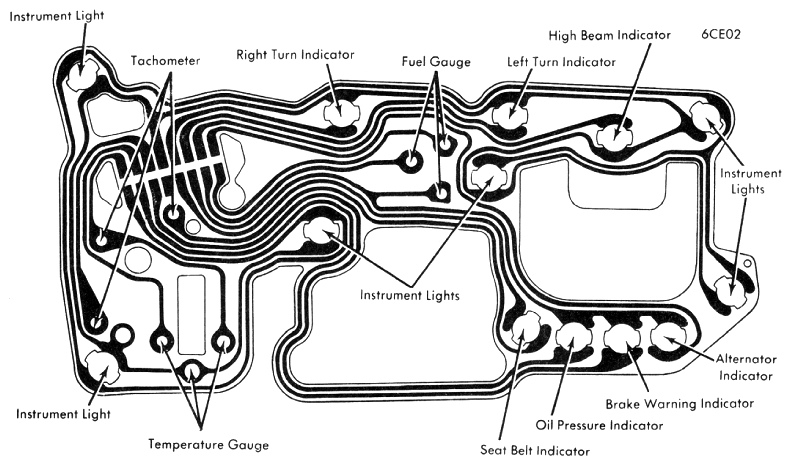

Fig 5: Chevelle (With Gauges)

Courtesy of GENERAL MOTORS COMPANY

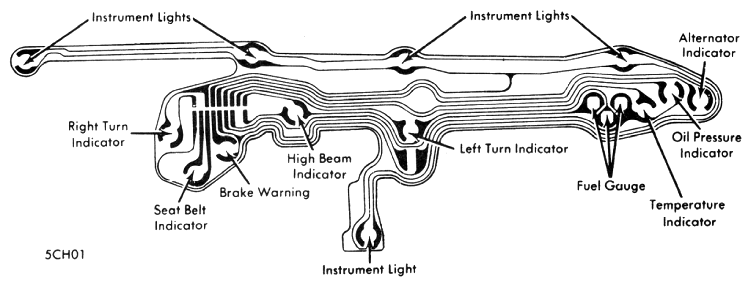

Fig 6: Chevelle (With Indicator Lights)

Courtesy of GENERAL MOTORS COMPANY

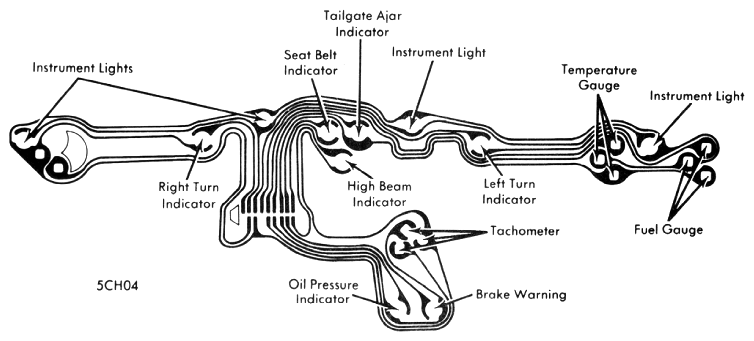

Fig 7: Chevelle (With Gauges)

Courtesy of GENERAL MOTORS COMPANY

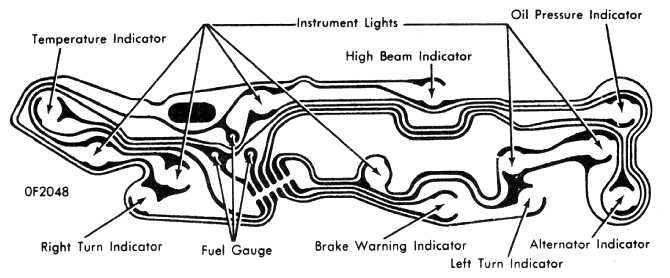

Fig 8: Monza

Courtesy of GENERAL MOTORS COMPANY

Fig 9: Nova

Courtesy of GENERAL MOTORS COMPANY
