All Models

Disconnect battery ground cable. Reach up behind instrument cluster and depress shaft retaining button to remove switch knob and rod. Remove instrument cluster switch retaining nut, and push switch from panel opening and remove electrical connections at switch terminals. Reinstall by reversing removal steps, making sure ground wire is reinstalled where applicable.

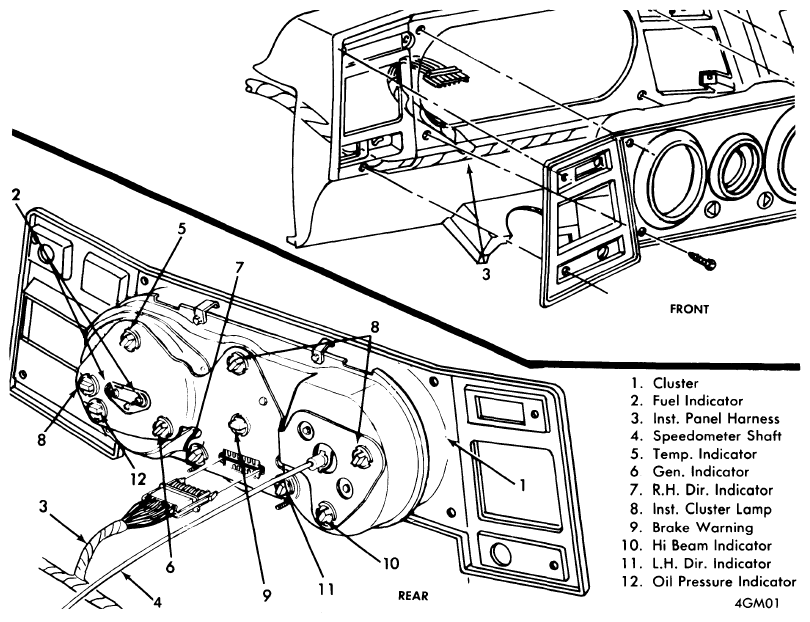

Fig 1: "G" MODELS INSTRUMENT CLUSTER
G09333424Courtesy of GENERAL MOTORS COMPANY

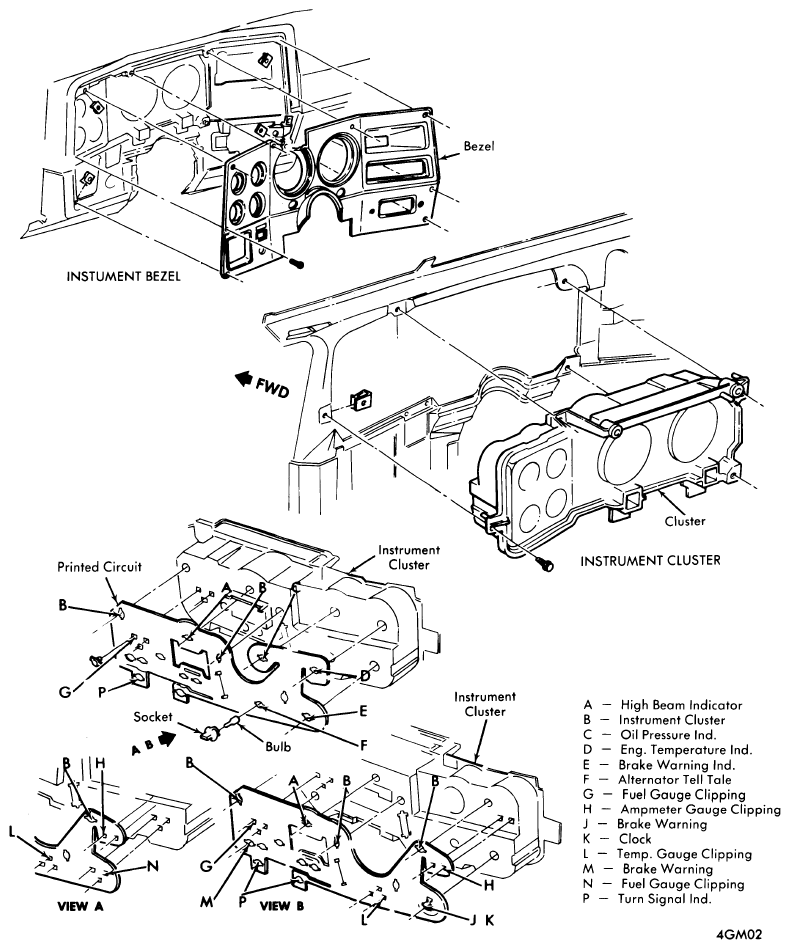

Fig 2: "C" & "K" MODELS INSTRUMENT CLUSTER
G09333425Courtesy of GENERAL MOTORS COMPANY
