Shoe Adjustment

Raise vehicle on hoist and remove rear wheels. Loosen brake cables at equalizer until parking brake levers move freely to "Off" position, with slack in cables. Turn disc until adjusting screw can be seen through hole in disc. Insert adjusting tool and tighten screw until disc will not move, then back off ten notches (1965-67), or six to eight notches (1968-73). Install rear wheels.

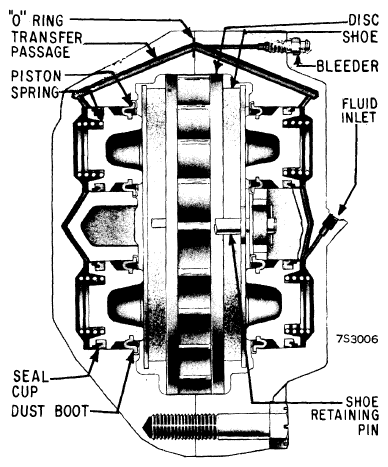

Fig 1: Delco-Moraine Disc Brake (Typical)
G09333070Courtesy of GENERAL MOTORS COMPANY
